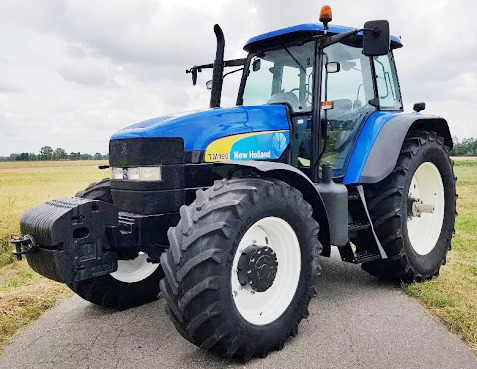

New Holland TM190 Tractor
The
New Holland TM 190 is a 4-wheel drive row-crop tractor. This model was
manufactured from 2002 to 2007. The New Holland TM190 tractor is powered by New
Holland 675TA vertical six-cylinder turbocharger intercooler diesel engine. A
458 cubic inches (7.6L) engine has a cylinder bore of 4.40" (111.8 mm), piston
stroke of 5" (127 mm), max power of 229 hp (168 kW), and 864 Nm (640 lb-ft) of
peak torque at 1400 rpm.
The New Holland TM 190 is fitted with two transmission options: Power
Command full powershift transmission with 18 forward and 6 reverse
gears, or Power Command Economy full powershift transmission with 19
forward and 6 reverse gears. The maximum forward speed - 28.5 mph (45.8
km/h), maximum reverse speed - 6.6 mph (10.5 km/h). The closed center
load sensing hydraulic system used a piston pump with a flow rate of
32.2 gal/min (120 l/min). The hydraulic pressure is 190 bar (2750 psi).
The New Holland TM190 was equipped with a hydrostatic power steering,
differential hydraulic wet disc brakes, 14.9R28 front tires, and 18.4R38
rear tires. The wheel base is 111.8" (2820 mm) for 4WD models, 114.2"
(2880 mm) for Terraglide models, and 118.1" (2975 mm) for SuperSteer
models. The tractor is compatible with a New Holland 860TL front-end
loader with lift capacity to full height (0.8m from pin) of 4900 lbs
(2223 kg) and breakout force (0.8m from pin) of 5800 lbs (2631 kg).
| Engine Model |
New Holland 675TA |
| Engine Type |
Vertical six-cylinder turbocharger intercooler diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
458 (7,61) |
| Engine Bore, in (mm) |
4,40 (111,8) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharger |
| Maximum Engine Power, hp (kW) |
229 (168) |
| Rated Engine Power, hp (kW) |
194 (142) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
864 (640) |
| Torque Speed, rpm |
1400 |
| Compression Ratio |
17.0:1 |
| Fuel System |
Injection pump |
| Fuel Filter Type |
Paper element |
| Air Cleaner |
Two paper elements and aspirator |
| Oil Filter Type |
Full flow cartridge |
| Fuel Tank Capacity, gal (L) |
105,4 (399,0) |
| Oil Capacity, qts (L) |
20,0 (19,1) |
| Coolant Capacity, qts (L) |
27,7 (26,2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
160,0 (119,3) |
| PTO Clutch |
Wet, multiplate |
| PTO Engagement |
Electro-hydraulic |
| PTO Speed, rpm |
540/540E/1000 |
| PTO / Engine Speed, rpm |
540/1969 |
| PTO / Engine Speed, rpm |
540E/1568 |
| PTO / Engine Speed, rpm |
1000/2178 |
| Transmission Type |
Power Command |
| Gearbox Type |
18F/6R (28F/12R with creeper), Full powershift |
| Number of Forward Gears |
18 (28) |
| Number of Reverse Gears |
6 (12) |
| Clutch Type |
Wet disc |
| Speed Range with Creeper, mph (kph) |
0,18-24,8 (0,29-39,9) |
| Maximum Forward Speed, mph (kph) |
24,8 (39,9) |
| Maximum Reverse Speed, mph (kph) |
6,6 (10,5) |
| Transmission Type |
Power Command Economy |
| Gearbox Type |
19F/6R, Full powershift |
| Number of Forward Gears |
19 |
| Number of Reverse Gears |
6 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
28,5 (45,8) |
| Maximum Reverse Speed, mph (kph) |
6,6 (10,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic wet disc |
| Front Tire Size |
14.9R28 |
| Rear Tire Size |
18.4R38 |
| Front Tread, in (mm) |
61,7-90,1 (1550-2270) |
| Rear Tread, in (mm) |
60,7-96,7 (1525-2440) |
| Hydraulic System Type |
Closed centre load sensing |
| Implement Pump Flow, gpm (Lpm) |
32,2 (120,0) |
| Steering Pump Flow, gpm (Lpm) |
17,4 (65,0) |
| Hydraulic Pressure, Bar (psi) |
190 (2750) |
| Hydraulic Fluid Capacity, gal (L) |
6,6 (25,0) |
| Number of Standard Remote Valves |
4 (rear), 2/4 (mid) |
| 3-Point Hitch Category |
2/3N |
| Draft Sensing or Lift Control |
Electronic lower-link draft control |
| Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
15810 (7190) |
| Standard Lift Capacity at pin, lb (kg) |
19020 (8650) |
| Wheelbase (Standard), in (mm) |
111,8 (2820) |
| Wheelbase (Terraglide), in (mm) |
114,2 (2880) |
| Wheelbase (SuperSteer), in (mm) |
118,1 (2975) |
| Length (Standard), in (mm) |
235,5 (5935) |
| Length (Terraglide), in (mm) |
237,9 (5995) |
| Length (SuperSteer), in (mm) |
241,7 (6090) |
| Height, in (mm) |
113,4 (2880) |
| Ground Clearance, in (mm) |
15,9 (400,0) |
| Turning Angle (4WD/Terraglide), deg |
55 |
| Turning Angle (SuperSteer), deg |
65 |
| Weight (Shipping), lb (kg) |
15360 (6965) |
| Weight (Operating), lb (kg) |
17470 (7925) |
| Weight (Ballasted), lb (kg) |
26410 (12000) |
