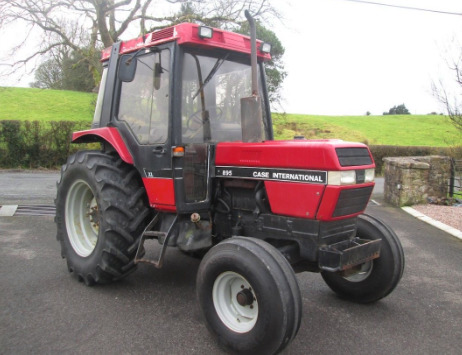

Case IH 895 Tractor
The
Case IH 895 is a 2-wheel drive or 4-wheel drive utility tractor from 95-series.
This model was manufactured between 1991 and 1994. Case IH 895 tractor is
powered by Case International D268 four-cylinder direct injection diesel engine
with a maximum power of 84 hp (62.5 kW) and 296 Nm (219.1 lb-ft) of max torque
at 1300 rpm.
The Case IH 895 is fitted with 3 transmission options: 8x4 partially
synchronized transmission, 8x8 synchronized shuttle transmission, or
partial powershift transmission with 16 forward and 8 reverse gears.
The max. forward speed - 19.8 mph (31.7 kph), a maximum reverse speed -
6.2 mph (10 kph). The open center hydraulic system used a gear pump with
flow of 15.8 gpm (59.8 lpm). The main relief pressure is 173 bar (2500
psi). The Case IH 895 is fitted with 7.50x16 front tires and 16.9x24
rear tires. The tractor can be equipped with
Case 2250 loader with a max
lift height of 123" (3120 mm) and breakout force of 3500 lbs (1587 kg).
| Engine Model |
Case International D268 |
| Engine Type |
4-stroke, direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4,40) |
| Engine Bore, in (mm) |
3,94 (100,0) |
| Engine Stroke, in (mm) |
5,50 (140,0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
84,0 (62,5) |
| Rated Engine Speed, rpm |
2400 |
| Maximum Torque, Nm (ft-lbs) |
296 (219,1) |
| Torque Speed, rpm |
1300 |
| Idle Speed, rpm |
650-2650 |
| Compression |
15.1:1 |
| Fuel Tank Capacity, gal (L) |
20,0 (75,7) |
| Oil Capacity, qts (L) |
9,0 (8,5) |
| Coolant Capacity, qts (L) |
14,5 (13,7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
72,0 (53,7) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
8F/4R, Partially synchronized |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
36,0 (34,1) |
| Maximum Forward Speed, mph (kph) |
19,8 (31,7) |
| Maximum Reverse Speed, mph (kph) |
6,2 (10,0) |
| Transmission Type |
16F/8R, Partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Maximum Forward Speed, mph (kph) |
19,8 (31,7) |
| Maximum Reverse Speed, mph (kph) |
6,2 (10,0) |
| Transmission Type |
8F/8R, Synchronized shuttle |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Maximum Forward Speed, mph (kph) |
19,7 (31,8) |
| Maximum Reverse Speed, mph (kph) |
25,2 (40,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Hydraulic wet disc |
| Front Tire Size |
7.50-16 |
| Rear Tire Size |
16.9-24 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
15,8 (59,8) |
| Steering Pump Flow, gpm (Lpm) |
2,5 (9,6) |
| Hydraulic Pressure, Bar (psi) |
173,0 (2500) |
| Hydraulic Capacity, gal (L) |
9,0 (34,0) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at 24-in (610 mm) ahead pin, lb (kg) |
3665 (1660) |
| Wheel Base, in (mm) |
88,7 (2250) |
| Length, in (mm) |
142 (3600) |
| Overall Width, in (mm) |
78 (1980) |
| Height, in (mm) |
97,4 (2470) |
| Clearance (2WD), in (mm) |
22 (550) |
| Clearance (4WD), in (mm) |
15,5 (390) |
| Weight (2WD), lb (kg) |
6065 (2750) |
| Weight (4WD), lb (kg) |
7220 (3270) |
