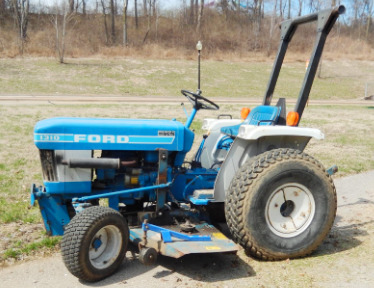

Ford 1310 Tractor Maintenance
The
Ford 1310 is a 2WD or 4WD compact utility tractor. This model was manufactured
by Shibaura built from 1983 to 1986. The Ford 1310 tractor is powered by
Shibaura S753 three-cylinder water-cooled diesel engine with a maximum power of
19.1 Hp (14.2 kW) and 53 Nm (39 lb-ft) max torque at 1800 rpm.
The Ford 1310 tractor is fitted with 2 types of transmission. Type 1:
12x4 unsynchronized gear transmission. Type 2: 12x4 partially
synchronized transmission. The maximum forward speed - 11.9 mph (19.2
kph), maximum reverse speed - 9.8 mph (15.8 kph).
The open center hydraulic system used a gear pump with a rated fluid
flow of 6.4 gpm (24.2 lpm). The hydraulic system pressure is 147 bar
(2135 psi). The 2-wheel drive models are equipped with 4.00x12 front
tires and 8.3x24 rear tires. The 6.00x12 or 25x8.50-14 front tires and
12.4x16 or 13.6x28 rear tires are used for tractors with 4-wheel drive.
The wheelbase is 63" (1600 mm).
Compatible attachments for the Ford 1310 tractor: a 60" mid-mount
3-blade mower deck, 48" or 59" rear-mount 3-blade mower deck with
hydraulic lift, 48" or 60" rear-mount two-stage snowblower with
hydraulic lifting system, Ford 770A front end loader,
Ford 770B front
end loader, and Ford 757A backhoe with max digging depth of 76.5" (1940
mm).
| Engine oil capacity, qts (L) |
4.0 (3.8) |
| Engine coolant capacity, qts (L) |
2.9 (2.7) |
| Transmission/Hydraulic system capacity, gal (L) |
5.8 (22.0) |
| Front axle oil capacity, qts (L) |
3.2 (3.0) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 10W-40, 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission/Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check the hydraulic/transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check front axle oil |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Clean engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic/transmission fluid |
Every 300 hours |
| Change front axle lubricant |
Every 300 hours |
| Clean hydraulic oil strainer |
Every 300 hours |
| Replace engine air filter |
Every 500 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
86546623, SBA140516180 |
| Engine fuel filter part number |
87300039, SBA360720020 |
| Engine air filter part number |
86512886 |
| Hydraulic oil filter part number |
Metal Strainer |
