Ford 1600 Tractor Maintenance
The

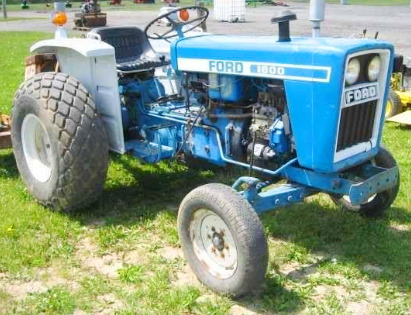

Ford 1600 compact utility tractor was manufactured from 1976 to 1979. The Ford
1600 is equipped with a 77.6 cubic inches Shibaura LE892 two-cylinder liquid
cooled diesel engine rated at 25 hp (18.6 kW). The transmission includes a dry
clutch and gearbox with 9 forward and 3 reverse gears. Max. travel speed
(forward/reverse): 8.7 mph (14 km/h) and 7.2 (11.6 km/h).
The open center hydraulic system includes a gear pump with rated fluid
flow of 4.2 gpm (15.9 lpm). The hydraulic system pressure is 98 bar
(1420 psi). The 2-wheel drive models are equipped with 5.00x15 front
tires and 11.2x24 rear tires.
The 20x8.00-10 front tires and 13.6x16 rear tires are used for tractors
with 4-wheel drive. The wheel base is 62.6" (1590 mm) for 4x2 (2WD)
models and 66.3" (1680 mm) for 4x4 (4WD) models. The Ford 1600 tractor
is compatible with a 60" mid-mount mower deck, and Ford 770 loader with
a lift capacity to full height (at pin) of 700 lbs (317 kg).
| Engine oil capacity, qts (L) |
5.3 (5.0) |
| Engine coolant capacity, qts (L) |
5.6 (5.3) |
| Transmission system capacity, gal (L) |
5.3 (19.9) |
| Hydraulic system capacity, gal (L) |
2.6 (9.8) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 10W-40, 15W-40, 10W-30, 15W-30, SAE 20W-20 |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Check engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic fluid |
Every 300 hours |
| Change transmission fluid |
Every 300 hours |
| Clean hydraulic oil strainer |
Every 300 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
86546613, E1NN6714BB |
| Engine fuel filter part number |
87300039, SBA360720020 |
| Engine air filter part number |
Oil Bath |
| Hydraulic oil filter part number |
Metal Strainer |
