Ford 1700 Tractor Maintenance
The

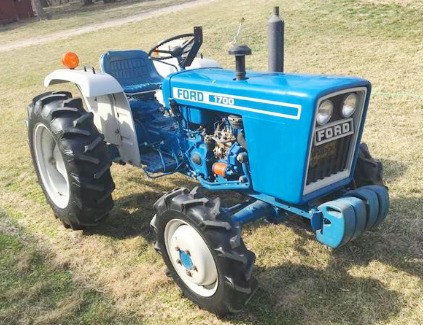

Ford 1700 is a compact utility tractor from Hundred compact series. This model
was manufactured by Shibaura built between 1979 and 1982. The Ford 1700
powertrain system components: Shibaura LE892 two-cylinder liquid cooled diesel
engine and gear transmission with 12 forward and 4 reverse gears.
A 77.6 cu.in (1.3 L) engine has a cylinder bore of 3.54 in (90 mm),
piston stroke of 3.94 in (100 mm), and rated power of 25 hp (18.6 kW).
Max. travel speed (forward/reverse): 12.3 mph (19.8 kph) and 8.6 mph
(13.8 kph).
The open center hydraulic system includes a gear pump with rated fluid
flow of 7.8 gal/min (29.5 l/min). The hydraulic pressure is 127 bar
(1850 psi). The two-wheel drive models are equipped with 5.00x15 front
tyres and 11.2-24 rear tyres. The 20x8.00-10 front tyres and 13.6-16
rear tyres fit four-wheel drive tractors. The wheelbase is 60.2 in (1520
mm) for 2WD models and 59.3 in (1500 mm) for 4WD models.
The Ford 1700 is compatible with a 60" mid-mount 3-blade mower deck, 60"
front-mount snowblower, Ford 770 loader with a lifting capacity to max
height of 700 lbs (317 kg), and Ford 770A loader with a lifting
capacity to max height of 600 lbs (272 kg).
| Engine oil capacity (2WD), qts (L) |
5.3 (5.0) |
| Engine oil capacity (4WD), qts (L) |
4.8 (4.5) |
| Engine coolant capacity, qts (L) |
5.6 (5.3) |
| Transmission/Hydraulic system capacity, gal (L) |
5.8 (21.9) |
| Front axle oil capacity, qts (L) |
2.7 (2.5) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 10W-40, 15W-40, 10W-30, 15W-30, SAE 20W-20 |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission/Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check the hydraulic/transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check front axle oil |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Clean engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic/transmission fluid |
Every 300 hours |
| Change front axle lubricant |
Every 300 hours |
| Clean hydraulic oil strainer |
Every 300 hours |
| Replace engine air filter |
Every 500 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
86546613, E1NN6714BB |
| Engine fuel filter part number |
87300039, SBA360720020 |
| Engine air filter part number |
SBA314530122 |
| Hydraulic oil filter part number |
Metal Strainer |
