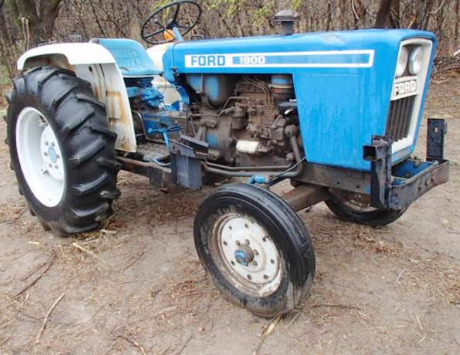

Ford 1900 Tractor
The
Ford 1900 is a Hundred series compact utility tractor. This model was
manufactured by Shibaura built from 1979 to 1983. The Ford 1900 driveline
consists of a Shibaura LEM853 3-cylinder liquid cooled diesel engine and gear
transmission with 12 forward and 4 reverse gears.
A 87.2 cu.in (1.43 L) engine has a cylinder bore of 3.35" (85 mm),
piston stroke of 3.31" (84 mm), and rated power of 30 hp (22.4 kW). The
maximum travel speed (forward and reverse): 13.4 mph (21.6 km/h) / 9.2
mph (14.8 km/h). The open center hydraulic system includes a gear pump
with flow rate of 7.8 lpm (29.5 gpm).
The hydraulic system pressure is 127 bar (1850 psi). The 4-wheel drive
models are equipped with 20x8.00-10 front tires and 13.6-16 rear tires.
The 5.00x15 front tires and 12.4x24 rear tires are used for tractors
with 2-wheel drive. The wheel base is 63" (1600 mm) for 2WD models and
64.2" (1630 mm) for 4WD models.
The Ford 1900 tractor is compatible with the following attachments: Ford
915 mower deck with a cutting width of 60" (1520 mm), a 60" front-mount
snow blower, Ford 771 front end loader with a lift capacity to full
height of 1130 lbs (512 kg), and Ford 757 backhoe with a digging depth
of 76" (1930 mm).
| Engine Model |
Shibaura LEM853 |
| Engine Type |
3-cylinder, liquid cooled diesel |
| Number of Cylinders |
Three |
| Displacement, cu in (L) |
87.2 (1.43) |
| Engine Bore, in (mm) |
3.35 (85.0) |
| Engine Stroke, in (mm) |
3.31 (84.0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
30.0 (22.4) |
| Rated Engine Power, hp (kW) |
28.7 (21.4) |
| Rated Engine Speed, rpm |
2800 |
| Low Idle Speed, rpm |
750 |
| High Idle Speed, rpm |
2950 |
| Compression Ratio |
21:1 |
| Firing Order |
1-2-3 |
| Air Cleaner Type |
Oil bath |
| Pre-Heating |
Glow plugs |
| Fuel Tank Capacity, gal (L) |
7.7 (29.1) |
| Oil Capacity, qts (L) |
6.7 (6.3) |
| Coolant Capacity, qts (L) |
7.2 (6.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
35 |
| PTO Operational Type |
Transmission / Live (Opt) |
| PTO Horsepower, hp (kW) |
26.9 (20.0) |
| Rear PTO Speed, rpm |
540 |
| Rear PTO / Engine Speed, rpm |
540/1955 |
| Front PTO |
Optional |
| Transmission Type |
12F/4R, Gear |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Single Plate |
| Oil Capacity, qts (L) |
25.4 (24.0) |
| Maximum Forward Speed, mph (kph) |
13.4 (21.6) |
| Maximum Reverse Speed, mph (kph) |
9.2 (14.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual / Power |
| Service Brake |
Differential mechanical drum |
| Front Tire Size (2WD) |
5.00-15 |
| Front Tire Size (4WD) |
6.00-16 |
| Rear Tire Size |
12.4-24 |
| Front Tire Size (Turf) |
20x8.00-10 |
| Rear Tire Size (Turf) |
13.6-16 |
| Front Tread (2WD), in (mm) |
43.5-57.5 (1100-1460) |
| Front Tread (4WD), in (mm) |
44.5 (1130) |
| Rear Tread, in (mm) |
45.7-61.1 (1160-1540) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
7.8 (29.5) |
| Hydraulic Pressure, Bar (psi) |
127 (1850) |
| Hydraulic System Capacity, gal (L) |
6.4 (24.2) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
3815 (1728) |
| Wheelbase (2WD), in (mm) |
63 (1600) |
| Wheelbase (4WD), in (mm) |
64.2 (1630) |
| Length, in (mm) |
118.8 (3010) |
| Overall Width, in (mm) |
57.7 (1460) |
| Height (Exhaust), in (mm) |
76.8 (1950) |
| Height (ROPS), in (mm) |
86.3 (2190) |
| Ground Clearance (2WD), in (mm) |
15.2 (380) |
| Ground Clearance (4WD), in (mm) |
13.8 (350) |
| Weight (2WD), lb (kg) |
2690 (1220) |
| Weight (4WD), lb (kg) |
2920 (1325) |
