Ford 2110 Tractor Maintenance
The

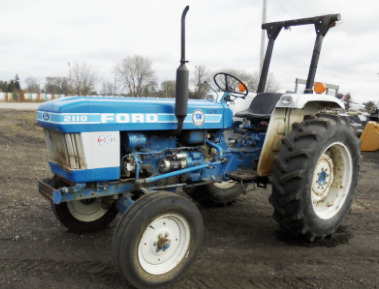

Ford 2110 is a two-wheel drive or four-wheel drive compact utility tractor from
Ten compact series. This model was manufactured by Shibaura built between 1983
and 1987. The Ford 2110 is powered by 138.4 cu.in (2.27 L) Shibaura T854B
4-cylinder engine with max. output power of 38 hp (28.3 kW) at 2500 rpm.
The Ford 2110 tractor was fitted with 2 types of transmission. Type 1:
12x4 unsynchronized gear transmission. Type 2: 12x4 partially
synchronized gear transmission. The maximum travel speed (forward and
reverse): 17.6 mph (28.3 km/h) / 15.6 mph (25.1 km/h).
The open center hydraulic system includes a gear pump with fluid flow
rate of 8.6 gal/min (32.5 l/min). The main relief pressure is 147 bar
(2135 psi). The 4WD models are equipped with 8.00x18 or 27x8.50-15 front
tyres and 13.6x28 or 18.4x16.1 rear tyres. The 6.00x16 or 25x8.50-14
front tyres and 13.6x28 or 18.4x16.1 rear tyres fit 2WD tractors. The
wheelbase is 73.4" (1860 mm) for 2-wheel drive models and 75.6" (1920
mm) for 4-wheel drive models.
The Ford 2110 tractor is compatible with a 60" rear-mount two-stage snow
blower with hydraulic lift, Ford 776A loader with lift capacity to full
height of 2500 lbs (1134 kg), Ford 776B front end loader with breakout
force of 3750 lbs (1701 kg), and Ford 758A backhoe with max digging
depth of 96" (2430 mm).
| Engine oil capacity, qts (L) |
8.0 (7.5) |
| Engine coolant capacity, qts (L) |
9.1 (8.6) |
| Transmission/Hydraulic system capacity, gal (L) |
8.6 (32.5) |
| Front axle oil capacity, qts (L) |
6.4 (6.0) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission/Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check the hydraulic/transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check front axle oil |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Clean engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic/transmission fluid |
Every 300 hours |
| Change front axle lubricant |
Every 300 hours |
| Replace hydraulic oil filter |
Every 300 hours |
| Replace engine air filter |
Every 500 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
86546619, SBA140516210 |
| Engine fuel filter part number |
87300041 |
| Engine air filter part number |
86512889 |
| Hydraulic oil filter part number |
4245130 |
