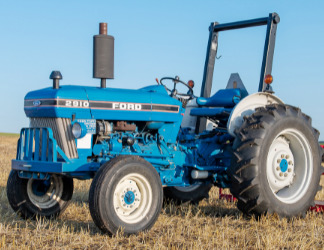

Ford 2910 Tractor Maintenance

The Ford 2910 is a 2WD or 4WD utility tractor from Ten Utility series. This model was manufactured between 1983 and 1989. The Ford 2910 tractor is powered by Ford vertical 3-cylinder water cooled diesel engine with a maximum output power of 44 Hp (32.8 kW) and 160 Nm (118 lb-ft) of max torque at 1400 rpm.

The Ford 2910 is equipped with two types of transmission. Type 1: 8x2 Dual Range transmission. Type 2: 8x4 synchromesh transmission. The maximum forward speed - 18.5 mph (29.8 km/h), maximum reverse speed - 8.9 mph (14.3 km/h).

The open center hydraulic system includes a gear pump with a rated capacity of 7.7 gpm (29.2 lpm). The hydraulic pressure is 2500 psi (173 bar). The Ford 2910 is fitted with 5.5x16 (2WD) or 8.3x24 (4WD) front tires and 12.4x28 rear tires. The wheel base is 77.5 in (1960 mm) for 2-wheel drive models and 84.1 in (2130 mm) for 4-wheel drive models.

The tractor can be equipped with the following attachments: Ford 776A loader with lift capacity to max height of 2500 lbs (1134 kg), and Ford 776B loader with breakout force of 3750 lbs (1701 kg).

Refill Capacities
Engine oil capacity, qts (L) 7.0 (6.6)
Engine coolant capacity, qts (L) 11.0 (10.4)
Transmission system capacity (8F/2R), gal (L) 3.1 (11.5)
Transmission system capacity (8F/4R), gal (L) 2.5 (9.5)
Hydraulic system capacity, gal (L) 6.2 (23.3)
Front axle oil capacity, qts (L) 5.8 (5.5)
Steering system capacity, qts (L) 1.9 (1.8)

Recommended Oil and Fluid
Engine oil type SAE 15W-40, 10W-30, 15W-30, SAE 10W
Engine coolant type Antifreeze/Coolant
Transmission fluid type 134D, SAE 10W-30
Hydraulic fluid type 134D, SAE 10W-30
Front axle oil type 134D, Gearlube 80W-90
Steering oil type 134D, SAE 10W-30

Service Intervals
Check engine oil level Every 10 hours
Check transmission fluid level Every 10 hours
Check engine air filter Every 10 hours
Check coolant level in radiator Every 10 hours
Check battery and clean terminals Every 50 hours
Check hydraulic fluid level Every 50 hours
Inspect and adjust alternator belt Every 100 hours
Lubricate axle hub bearings Every 100 hours
Change engine oil Every 300 hours
Replace engine oil filter Every 300 hours
Clean engine air filters Every 300 hours
Clean engine fuel filter Every 300 hours
Adjust parking and service brakes Every 300 hours
Replace engine air filters Every 600 hours
Replace power steering filter Every 600 hours
Change steering oil Every 600 hours
Check and adjust engine idling Every 600 hours
Check and adjust valve clearance Every 600 hours
Replace engine fuel filter Every 1200 hours
Change hydraulic fluid Every 1200 hours
Change transmission fluid Every 1200 hours
Change front axle oil Every 1200 hours
Replace hydraulic oil filter Every 1200 hours
Flush cooling system and add new coolant Every 1200 hours

Replacement Parts
Engine oil filter part number 86546614, E8NN6714AA
Engine fuel filter part number 84535312, EDPN9N074AA
Engine air filter part number (Primary) 84493216, 86525008
Engine air filter part number (Secondary) E9NN9B618AA, D6NN9601B
Hydraulic oil filter part number 84518613, D6NNB486A
Steering oil filter part number EDPN3K758A
