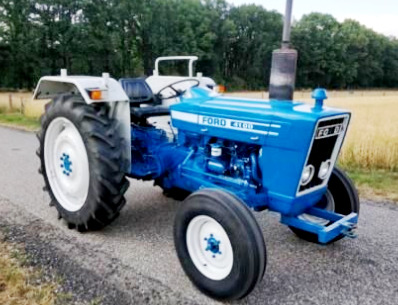

Ford 4100 Tractor
The
Ford 4100 is a 2WD (4x2) utility tractor. This model was manufactured between
1975 and 1981. The Ford 4100 tractor is equipped with a Ford vertical 3-cylinder
water cooled diesel engine.
A 183 cubic inches (3 L) engine has a cylinder bore of 4.2" (107 mm),
piston stroke of 4.4" (112 mm), and rated power of 52 hp (38.7 kW). The
Dual Range transmission includes a dry clutch with a disc diameter of
11" (279 mm) and mechanical gearbox with 8 forward and 2 reverse gears.
The maximum forward speed - 15 mph (24.1 km/h), maximum reverse speed -
7.2 mph (11.6 km/h).
The open center hydraulic system includes a gear pump with a rated
capacity of 8.5 gpm (32.2 lpm). The hydraulic pressure is 185 bar (2600
psi). The Ford 4100 is equipped with a power steering system, mechanical
wet brakes, 7.5-15 front tires, and 14.9-28 rear tires. The wheel base
is 77.3" (1960 mm). The tractor is compatible with a
Ford 730 loader
with lift capacity to full height of 2040 lbs (925 kg), or
Ford 772A
loader with lift capacity to max height of 2460 lbs (1115 kg).
| Engine Model |
Ford |
| Engine Type |
Vertical 3-cylinder water cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
183 (3.0) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Rated Engine Power, hp (kW) |
52.0 (38.7) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
16.3:1 |
| Firing Order |
1-2-3 |
| Maximum Torque, Nm (ft-lbs) |
187 (138) |
| Torque Speed, rpm |
1600 |
| Air Cleaner |
Oil bath |
| Fuel Tank Capacity, gal (L) |
13.0 (49.3) |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Coolant Capacity, qts (L) |
11.0 (10.4) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
128 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
45.0 (33.6) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1800 |
| Transmission Type |
Dual Range |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
11.0 (279) |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Maximum Forward Speed, mph (kph) |
15.0 (24.1) |
| Maximum Reverse Speed, mph (kph) |
7.2 (11.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Mechanical wet disc |
| Front Tire Size |
7.5-15 |
| Rear Tire Size |
14.9-28 |
| Front Tread, in (mm) |
52.0-80.0 (1320-2030) |
| Rear Tread, in (mm) |
56.0-80.0 (1420-2030) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow (Std), gpm (Lpm) |
8.5 (32.2) |
| Steering Flow, gpm (Lpm) |
4.5 (17.1) |
| Hydraulic Pressure, Bar (psi) |
185 (2600) |
| Steering Pressure, Bar (psi) |
55.0 (800) |
| Hydraulic System Capacity, gal (L) |
12.1 (45.8) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
3080 (1395) |
| Wheelbase, in (mm) |
77.3 (1960) |
| Length, in (mm) |
136.3 (3460) |
| Height (Steering Wheel), in (mm) |
58.8 (1490) |
| Height (Hood), in (mm) |
52.7 (1320) |
| Overall Width, in (mm) |
70.8 (1790) |
| Ground Clearance, in (mm) |
17.3 (430) |
| Weight, lb (kg) |
4655 (2110) |
