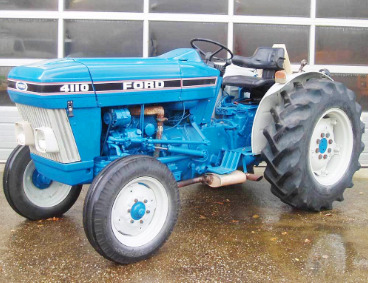

Ford 4110 Tractor Maintenance
The
Ford 4110 is a 2WD utilily tractor from 10 Utility series. This model was
manufactured between 1982 and 1983. The Ford 4110 is powered by 201 cu.in (3.3L)
Ford vertical 3-cylinder water cooled diesel engine with a rated power of 54 hp
(40.3 kW) and 184 Nm (136 lb-ft) of max torque at 1400 rev/min.
The Ford 4110 tractor is equipped with two transmission options: 8x2
Dual range gear transmission and 8x4 synchromesh transmission. The
maximum forward speed - 17.3 mph (27.8 kph), max. reverse speed - 7.4
mph (12 kph).
The open center hydraulic system includes a gear pump with a rated
capacity of 8.5 gal/min (32.2 l/min). The hydraulic pressure is 185 bar
(2600 psi). The Ford 4110 is fitted with 7.50x15 or 7.50x16 front tires
and 16.9x24 or 14.9x28 rear tires. The wheelbase is 77.3 in (1960 mm).
The tractor can be equipped with the following attachments:
Ford 730
loader with a maximum lift height of 125" (3170 mm), Ford 776A loader
with a max lift height of 124" (3140 mm), and
Ford 776B loader with lift
capacity to full height of 2500 lbs (1134 kg).
| Engine oil capacity, qts (L) |
7.0 (6.6) |
| Engine coolant capacity, qts (L) |
14.0 (13.2) |
| Transmission system capacity (Dual Range), gal (L) |
3.3 (12.5) |
| Transmission system capacity (Synchromesh), gal (L) |
2.5 (9.5) |
| Transmission system capacity (Select-O-Speed), gal (L) |
3.2 (12.0) |
| Hydraulic system capacity, gal (L) |
6.3 (23.8) |
| Front axle oil capacity, qts (L) |
5.8 (5.5) |
| Steering system capacity, qts (L) |
2.3 (2.2) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Steering oil type |
134D, Gearlube LS 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filters |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filters |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filters |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Change front axle oil |
Every 1200 hours |
| Replace transmission oil filter (Select-O-Speed) |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number |
86546614, E8NN6714AA |
| Engine fuel filter part number |
84535312, VPD6851 |
| Engine air filter part number (Primary) |
84493216, 86525008 |
| Engine air filter part number (Secondary) |
E9NN9B618AA, D6NN9601B |
| Hydraulic oil filter part number |
84518613, D6NNB486A |
| Transmission oil filter part number (Select-O-Speed) |
309735, C0NN7B155A |
| Steering oil filter part number |
C7NN3N538A, EDPN3K758A |
