John Deere 2320 Troubleshooting
The

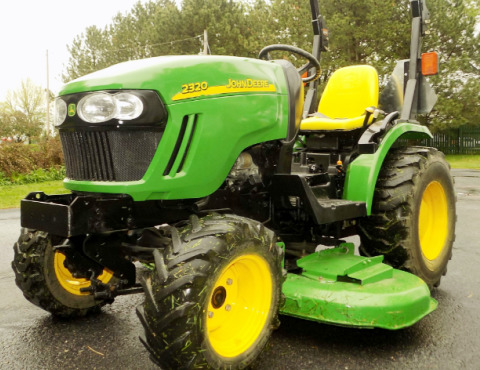

John Deere 2320 compact utility tractor was manufactured from 2006 to 2012. The
components of John Deere 2320 driveline system: Yanmar 3TNV76 4-cycle
three-cylinder indirect injection liquid-cooled diesel engine and two-range
hydrostatic transmission with infinite forward and reverse gears.
A 68.1 cubic inches (1.1L) engine has a cylinder bore of 2.99" (76 mm),
piston stroke of 3.23" (82 mm), and maximum power of 24.1 hp (18 kW).
Max forward speed - 11.3 mph (18.1 kph), max reverse speed - 11 mph
(17.6 kph).
The open center hydraulic system used a dual gear pump with rated
capacity of 3.4 gpm (13 lpm). The main relief pressure is 167 bar (2420
psi). The John Deere 2320 is equipped with a hydrostatic power steering,
wet disc brakes, 23x8.50-12 front tires, and 31x12.00-16.5 rear tires.
The wheelbase is 63" (1600 mm). The tractor is compatible with a
John
Deere 200CX front-end loader with lift capacity to full height of 902
lbs (409 kg) and breakout force of 2239 lbs (1015 kg).
| Engine Troubleshooting |
| Engine will not start or hard to start |
| Fuel filter is dirty - Service or replace the filter |
| Fuel supply valve is closed - Open fuel supply valve |
| There is air in the fuel system - Bleed the system |
| Faulty or dirty injectors - Check fuel injectors and replace if required |
| Damaged fuel injection pump - Replace injection pump or repair it |
| Low compression - Inspect cylinder block and change worn parts |
| Diesel shuts off during operation |
| Low coolant temperature - Warm up engine as required |
| Air in fuel lines - Bleed fuel lines |
| Fuel injection failed - Use correct settings |
| Clogged fuel filter element - Clean the filter element |
| Fuel injectors are damaged or dirty - Service or change fuel injectors |
| Diesel starts but then stalls |
| Incorrect setting of fuel injection pump timing - Check and correct adjustments |
| Fuel filter clogging - Clean the filter element |
| Fuel injector nozzles are clogged or faulty - Service or replace nozzles if required |
| Fuel injection pump malfunctioning - Change or repair the pump |
| Dirty air cleaner element - Change or replace air cleaner element |
| Engine stalls while idling |
| Incorrect low idle setting - Correct the settings |
| Faulty fuel injection pump - Repair or install new pump |
| Faulty fuel injector nozzles - Check and change nozzles as required |
| Valve clearance is wrong - Check and adjust |
| Insufficient coolant - Refill to the correct level. Check radiator and hoses for leaks |
| Cooling system components are defective or system is dirty - Flush cooling system or change faulty components |
| Low engine oil level - Fill the crankcase with engine oil |
| Fan belt is worn or belt tension is improper - Adjust as required or replace belt |
| Thermostat failure - Thermostat needs to be replaced |
| Fuel injectors are defective or dirty - Change fuel injectors |
| Fuel injection pressure is wrong - Repair or replace injection pump |
| Clogged air filter - Change or replace air filter element |
| Oil filter clogging - Service or change engine oil filter element |
| Engine is under excessive load - Change to lower gear or reduce load |
| Valve clearance is wrong - Have it adjusted |
| Low idle speed adjustment is incorrect - Normalize low idle speed |
| Fuel pipes or hoses are clogged - Clean fuel system pipes and hoses |
| Insufficient engine compression: Leaking or faulty valves - Have valves replaced |
| Unadjusted fuel injection pump timing - Fuel injection pump timing adjustment needs to be corrected |
| Fuel injector nozzles fault - Change injector nozzles |
| Lack of engine oil - Check oil level and add oil as required |
| Engine is not preheated - Warm up the engine |
| Worn crankshaft or main bearings - Have bearings or crankshaft replaced |
| Piston rings failure - Replace piston rings |
| Flywheel screws are loose - Tighten the screws firmly |
| Oil leaks: Defective seals or gaskets - Replace to repair leaks |
| Oil viscosity is incorrect - Use correct viscosity oil |
| Seized or wear piston rings - Change the piston rings as required |
| Valve stems and guides are worn - Valves need to be changed |
| Worn cylinder liners or pistons - Inspect pistons and liners, replace as required |
| Electrical System Troubleshooting |
| Battery does not charge |
| Battery faulty cell - Use a new battery |
| Battery cable harness failure - Check battery electrical cable for defects, replace or repair |
| Battery cables and terminals are corroded or loose - Clean or tighten terminals and cables |
| Damaged belt or incorrectly adjusted belt tension - Adjust belt tension as required or replace belt |
| Low battery power - Battery is drained, recharge it |
| Battery does not hold charge - Service charging system or change battery |
| Battery cable harness failure - Check battery electrical cable for defects, replace or repair |
| Battery terminals and cables are loose or corroded - Tighten or service cables and terminals |
| Low battery capacity - Battery is drained, charge it |
| Discharged or defective battery - Recharge or change battery |
| Starter motor failure - Replace or repair starter |
| Cables harness is improperly connected or disconnected - Inspect cables harness and reconnect it properly |
| Hydrostatic Transmission Troubleshooting |
| HST transmission is excessively noisy |
| Contaminated oil or low oil level - Change the oil or fill to required level |
| Speed control rod linkage is damaged or unadjusted - Adjust or replace control rod linkage |
| Relief valve is faulty - Replace relief valve |
| Transmission is under excessive load - Reduce loading |
| Defective or worn components of hydrostatic transmission - Change or repair damaged parts |
| Oil level is insufficient - Checking transmission oil level and add if necessary |
| Transmission fluid filter is dirty - Clean or replace the transmission fluid filter |
| Defective or plugged cooling components - Inspect all cooling components and service or change if necessary |
| Excessive loading - Load needs to be reduced |
| Fluid level is low - Add transmission fluid as required |
| Charge pressure is too low - Test charge pressure |
| Worn or damaged relief valve - Change the valve |
| Gaskets or seals are broken - Install new gaskets or seal |
| High pressure inside the transmission housing - Replace or repair defective components |
| Plugged transmission fluid drain pipe - Service or change drain pipe |
| Hydraulics Troubleshooting |
| Hydraulic system overheating |
| Hydraulic system pressure is incorrect - Hydraulic pressure needs to be set correctly |
| Unadjusted or defective main relief valve - Adjust or replace the relief valve |
| Dirty hydraulic fluid - The fluid must be changed |
| Air enters in hydraulic system - Check the pump seals, suction pipe, and fittings |
| Low hydraulic oil pressure |
| Lack of hydraulic oil - Check oil level and add hydraulic oil as required |
| Hydraulic fluid filter is clogged - Change the hydraulic filter element or service if required |
| Hydraulic pump is faulty - Test pump flow rate and replace pump if required |
| Defective or incorrect setting hydraulic spool valve block - Replace or set correctly |
| Hydraulic cylinder is broken - Check the hydraulic cylinder parts for damage or wear and replace if necessary |
| Leakage in hydraulic pipes - Detect leaks in hydraulic system and repair it |
| Hitch fails to lift or lifts slowly |
| Hydraulic fluid level is insufficient - Fill the hydraulic system with oil |
| Cold oil in hydraulic system - Wait for oil to warm up |
| Hydraulic oil filter element is dirty - Service or replace the hydraulic filter |
| Hydraulic pump failure - Flow-rate hydraulic pump and replace pump if necessary |
| Main relief valve is damaged or adjusted improperly - Adjust relief valve or change if required |
| Hydraulic control valve block is not set properly or defective - Change or adjust properly |
| Defective hydraulic cylinder - Check cylinder components for damage or wear and change if necessary |
| Suction line is damaged or disconnected - Connect or replace |
| Hitch can't drop or drops too slowly |
| Faulty or incorrect setting hydraulic spool valve - Replace or set correctly |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Hitch rock shaft is damaged - Replace the shaft |
| The hitch has any internal mechanical damage - Change damaged or worn hitch parts |
| Hitch lowering or lifting is not smoothly |
| Air enters in hydraulic system - Inspect the pump seals, suction line, and fittings |
| Dirty hydraulic fluid - The fluid must be changed |
| Damaged hydraulic oil pump - Check the pump capacity and replace pump if required |
| Defective or incorrect setting hydraulic control valve block - Replace or set correctly |
| Hydraulic cylinder is not working - Check cylinder parts for damage or wear and replace if necessary |
| Steering System Troubleshooting |
| Steering wheel turns hard |
| Steering column is defective or improperly assembled - Change steering column or assemble properly |
| Air leaks in steering system - Bleed the system of air |
| Improper toe-in adjustment - Check and adjust toe-in |
| Incorrect tire pressure - Inflate the tires correctly |
| Faulty steering pump - Steering pump needs to be replaced or repaired |
| Worn or damaged power steering control valve - Repair or change the steering control valve |
| Relief valve sticking or malfunction - Replace or install new relief valve |
| Steering oil level is insufficient - Checking steering oil level and add it if necessary |
| Oil leaks in the steering system - Tighten the steering pipe and hose joints |
| Steering wheel free play is excessive |
| Steering column coupling or shaft is worn - Change faulty part |
| Power steering control valve is worn or defective - Inspect and change as required |
| Steering pump failure - Install a new hydraulic steering pump |
| Faulty or worn steering tie-rod ends or linkage - Change failed part |
| Tractor is pulling to left or right |
| Low tire pressure - Inflate the tires |
| Incorrect toe-in adjustment - Check and adjust toe-in |
| Steering tie-rod ends or linkage are defective - Replace damaged part |
| Worn or defective power steering control valve - Check and replace as required |
| Damaged steering cylinder - Change or repair hydraulic steering cylinder |
| Front hub bearings are improperly adjusted or defective - Adjust properly or change bearings |
