John Deere 3032E Troubleshooting
The

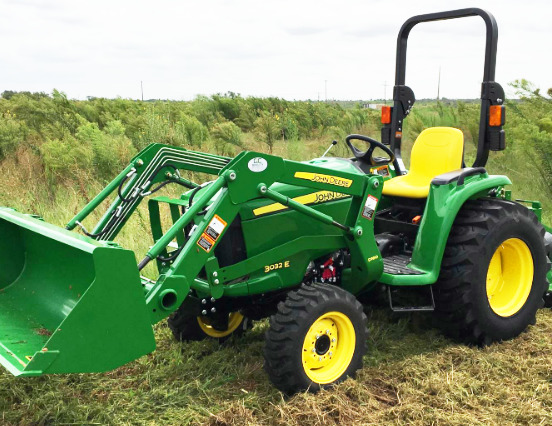

John Deere 3032E is a 4-wheel drive compact utility tractor. This model was
manufactured from 2008 to 2021. The components of John Deere 3032E driveline
system: Yanmar 3TNV88 four-cycle three-cylinder direct injection liquid-cooled
diesel engine and two-range hydrostatic transmission with infinite forward and
reverse gears.
A 100.2 cubic inches (1.6L) engine has a cylinder bore of 3.47" (88 mm),
piston stroke of 3.54" (90 mm), and maximum power of 30.7 hp (22.9 kW).
Max travel speed (forward/reverse): 14.1 mph (22.7 km/h) / 13 mph (21
km/h). The open center hydraulic system includes a gear pump with a
rated capacity of 5.3 gal/min (20.2 l/min). The main relief pressure is
172 bar (2500 psi).
The John Deere 3032E is equipped with a hydrostatic power steering, wet
disc brakes, 7.00x14 (AG) or 25x8.50-14 (Industrial) front tires, and
11.2x24 (AG) or 15-19.5 (Industrial) rear tires. The wheelbase is 62.8"
(1590 mm). The tractor is compatible with a
John Deere D160 front-end
loader with lift capacity to full height of 1186 lbs (537 kg) and
breakout force of 1704 lbs (772 kg).
| Engine Troubleshooting |
| Engine doesn't start or difficult to start |
| Fuel filter is dirty - Clean or replace the filter |
| No fuel supply from the tank - Open the fuel supply valve |
| Air in fuel lines - Bleed fuel lines |
| Dirty or faulty injectors - Clean or replace fuel injectors |
| Fuel injection pump is not working correctly - Replace or repair injection pump |
| Engine has bad compression - Check cylinder block and replace defective parts |
| Engine stalls during operation |
| Engine has not warmed up to the recommended temperature - Warm up to required temperature |
| Air trapped in fuel system - Bleed air |
| Bad fuel injection - Check and adjust |
| Plugged fuel filter - Replace the filter element |
| Fuel injectors are clogged or faulty - Inspect fuel injectors and replace if necessary |
| Engine starts but then shuts off |
| Fuel injection pump timing is incorrect - Adjust injection timing |
| Dirty fuel filter element - Service the filter |
| Fuel injector nozzles are damaged or dirty - Service or replace nozzles if required |
| Fuel injection pump damage - Repair or change injection pump |
| Air cleaner is clogged - Replace cleaner or install new cleaner element |
| Wrong adjustment of low idle speed - Adjust low idle speed |
| Fuel injection pump malfunction - Repair or install a new fuel pump |
| Fuel injector nozzles are damaged - Install a new set of well-balanced nozzles |
| Valve clearance is out of adjustment - Adjust valve clearance |
| Engine coolant is insufficient - Top up coolant. Any leaks must be repaired |
| Cooling system components are failed or system is dirty - Change faulty components or service cooling system |
| Not enough engine oil - Need to add engine oil |
| Fan belt tension is unadjusted or belt is damaged - Adjust belt tension correctly or change it |
| Defective thermostat - Check and replace if required |
| Clogged or damaged injectors - Test fuel injectors and change if necessary |
| Improper fuel injection pressure - Adjust to correct pressure |
| Air filter element clogging - Replace or service air filter element |
| Clogged oil filter - Service or replace engine oil filter |
| Engine is overloaded - Load reducing required |
| Excessive valve clearance - Adjustment procedure required |
| Improperly adjusted low idle speed - Need to adjust idle speed |
| Restricted fuel pipes or hoses - Clean fuel system hoses and pipes |
| Engine lost compression: Worn or damaged valves - Replace the valves |
| Unadjusted fuel injection pump timing - Correct injection timing |
| Faulty fuel injector nozzles - Service or replace nozzles if required |
| Engine oil level is low - Fill up the oil to required level |
| Engine is cold - Warm up to required temperature |
| Crankshaft or main bearings are worn out - Repair or replace defective parts |
| Piston rings failure - Install new piston rings |
| The flywheel to crankshaft bolts are loose - Tighten bolts as required |
| Excessive oil consumption |
| External oil leaks: Defective seals or gaskets - Replace to repair leaks |
| Crankcase oil too light - Use oil of proper viscosity |
| Worn or stuck piston rings - Change the piston rings as required |
| Worn valve stems and valve guides - Replace defective valves |
| Scuffed cylinder liners or pistons - Check liners and pistons, replace as required |
| Electrical System Troubleshooting |
| Battery cannot be charged |
| Battery faulty cell - Battery change required |
| Damaged battery wiring harness - Inspect wiring for damage, replace or repair |
| Corroded or loose terminals and cables - Clean or tighten cables and terminals |
| Damaged belt or incorrectly adjusted belt tension - Replace belt or correctly adjust belt tension |
| Starter motor cranks slow |
| Low battery output voltage - Battery needs to be recharged |
| Battery is draining quickly - Battery needs service or replacement |
| Damaged battery electrical wire harness - Inspect electrical wires for damage, change or repair |
| Battery terminals and cables are corroded or loose - Terminals and cables need to be tightened or cleaned |
| Low battery power - Low battery charging, charge as required |
| Discharged or worn battery - Need to charge or replace the battery |
| Damaged starter motor - Change or repair starter |
| Incorrectly connected or disconnected wires - Check battery wires and connect correctly |
| Hydrostatic Transmission Troubleshooting |
| Excessive HST transmission noise |
| Dirty transmission oil or insufficient oil level - Pour fresh oil or add oil to proper level |
| Damaged or not adjusted speed control rod linkage - Repair or adjust link rod linkage |
| Relief valve is defective - Install a new valve |
| Excessive loading - Reduce transmission load |
| Worn or damaged parts of transmission - After disassembly and checking, replace worn components |
| Fluid level is low - Fill the transmission housing with fluid |
| Clogged transmission oil filter - Replace or clean transmission oil filter |
| Cooling components are plugged or defective - Check all cooling components and change or repair if required |
| Excessive transmission load - The load should be reduced |
| Not enough oil in transmission - Checking transmission oil level and add if necessary |
| Charge pressure is insufficient - Test charge pressure |
| Relief valve is worn or damaged - Change relief valve |
| Transmission fluid leaking |
| Worn gaskets or seals - Replace worn seal or gaskets |
| Internal transmission case pressure is too high - Inspect transmission parts for malfunction and change if required |
| Oil return tube is plugged - Check tube and clean if required |
| Hydraulics Troubleshooting |
| Hydraulic system overheats |
| Improper hydraulic system pressure setting - Set the pressure properly |
| Defective or misadjusted main relief valve - Adjust the valve or replace if necessary |
| Dirty hydraulic oil - The oil must be changed |
| Air trapped in the hydraulic system - Inspect the pump seals, suction pipe, and fittings |
| Hydraulic fluid pressure too low |
| Hydraulic fluid level is low - Check and refill the hydraulic fluid |
| Hydraulic fluid filter clogging - Replace filter element or clean if required |
| Faulty hydraulic oil pump - Test the pump performance and change pump if required |
| Hydraulic spool valve block is not set properly or defective - Change or set correctly |
| Hydraulic cylinder malfunction - Check the cylinder components for damage or wear and change if necessary |
| Hydraulic pipes are leaking - Find leaks in hydraulic system and repair it |
| 3-point hitch won't raise or raises slowly |
| Lack of hydraulic oil - Check oil level and add hydraulic oil as required |
| Cold fluid in hydraulic system - Wait for fluid to warm up |
| Hydraulic fluid filter element is dirty - Change hydraulic filter element or clean if necessary |
| Hydraulic pump is defective - Check pump flow and change pump if necessary |
| Defective or misadjusted main relief valve - Adjust or change relief valve |
| Faulty or incorrect setting hydraulic spool valve - Set properly or replace |
| Hydraulic cylinder is defective - Inspect cylinder components for damage or wear and change if required |
| Damaged or disconnected suction pipe - Connect or replace |
| Three-point hitch dropping is too slow or cannot be dropped |
| Hydraulic spool valve block is defective or set improper - Adjust properly or replace |
| Hydraulic cylinder is broken - Inspect cylinder parts for wear or damage and replace if required |
| Hitch cross shaft is damaged - Change the shaft |
| The hitch is defective if there is internal mechanical damage - Replace defective or worn hitch parts |
| Hitch is lowered or raised jerkily |
| Air in hydraulic system - Inspect the suction pipe, fittings, and pump seals |
| Contaminated hydraulic oil - Change hydraulic oil |
| Hydraulic pump is faulty - Check hydraulic pump flow and replace pump if necessary |
| Hydraulic spool valve block is faulty or out of adjustment - Set correctly or replace |
| Hydraulic cylinder malfunction - Check cylinder components for damage or wear and change if necessary |
| Steering System Troubleshooting |
| Hard Steering |
| Steering column is defective or incorrectly installed - Steering column must be installed correctly or replaced |
| Air enters in steering system - Air-bleed steering system |
| Toe-in adjustment is incorrect - Adjust toe-in properly |
| Tire pressure is not correct - Check tire pressure and inflate as required |
| Steering pump is worn - Check the steering pump and replace if necessary |
| Power steering control valve has wear or malfunction - Inspect and change as required |
| Relief valve is seized or defective - Install a new relief valve or clean it |
| Steering fluid insufficient - Check and refill steering fluid |
| Oil leakage in the steering system - Retighten steering line and hose connections |
| Excessive steering wheel free play |
| Worn steering column shaft or coupling - Replace defective component |
| Power steering control valve has wear or malfunction - Repair or replace the steering valve |
| Steering pump not working - Install a new steering pump |
| Steering linkage or tie-rod ends are defective - Replace failed part |
| Tractor is pulling to right or left |
| Tire pressure is improper - Inflate the tires properly |
| Toe-in adjustment is incorrect - Check and adjust toe-in |
| Steering linkage or tie-rod ends are defective - Replace failed part |
| Damaged or worn power steering control valve - Repair or replace the steering valve |
| Steering cylinder failure - Repair or replace steering cylinder |
| Front hub bearings are improperly adjusted or defective - Adjust correctly or install new bearings |
