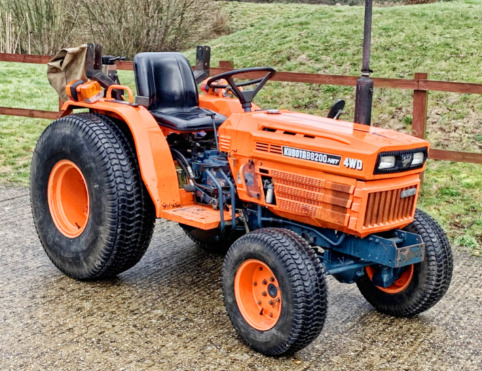

Kubota B8200HST Tractor
The
Kubota B8200HST compact utility tractor was manufactured between 1983 and 1990.
This model was designed in two versions: B8200HST-E (2WD) and B8200HST-D (4WD).
The Kubota B8200HST driveline includes a 56.6 cu.in (0.93L) Kubota D950-A-DT
vertical 3-cylinder indirect injection naturally aspirated liquid-cooled diesel
engine and 3-range hydrostatic transmission with infinite forward and reverse
gears.
The engine has a cylinder bore of 2.97" (75 mm), piston stroke of 2.76"
(70 mm), maximum power of 21.5 hp (15.9 kW), and 55.6 Nm (41.2 lb-ft) of
peak torque at 1800 rpm. The maximum forward speed - 11.7 mph (18.9
km/h), max reverse speed - 9.4 mph (15.1 km/h). The open center
hydraulic system used a gear pump with a flow of 6.5 gal/min (24.6
l/min). The main relief pressure is 118 bar (1715 psi).
The 2-wheel drive models are equipped with 4.00x12 front tyres and
8.30x24 rear tyres. The 6.50x10 (AG) or 24x8.50-12 (Turf) front tyres
and 12.4x16 (AG) or 13.6x16 (Turf) rear tyres fit 4-wheel drive
tractors. The wheel base is 60.4" (1535 mm). The Kubota B8200HST is
compatible with the following attachments: a 60" mid-mount 3-blade mower
deck with cutting height of 1.5-4.0" (38-102 mm), 51" front-mount
two-stage snowblower with hydraulic lift system,
Kubota BF300 front-end
loader with lift capacity to full height of 705 lbs (320 kg), and Kubota
BK4520 backhoe with maximum digging depth of 78" (1980 mm).
Engine Model |
Kubota D950-A-DT |
Engine Type |
Vertical water-cooled 4-cycle diesel |
Number of Cylinders |
3 |
Displacement, cu in (L) |
56.6 (0.93) |
Engine Bore, in (mm) |
2.97 (75.0) |
Engine Stroke, in (mm) |
2.76 (70.0) |
Aspiration |
Naturally aspirated |
Maximum Engine Power, hp (kW) |
21.5 (15.9) |
Rated Engine Power, hp (kW) |
19.5 (14.4) |
Rated Engine Speed, rpm |
2600 |
Maximum Torque, Nm (lb-ft) |
55.6 (41.2) |
Torque Speed, rpm |
1800 |
Compression Ratio |
22:1 |
Firing Order |
1-2-3 |
Fuel System |
Indirect injection |
Air Cleaner |
Dual paper element |
Lubrication |
Forced lubrication by pump |
Cooling System |
Water with pressurized radiator |
Fuel Tank Capacity, gal (L) |
5.3 (20.0) |
Oil Capacity, qts (L) |
3.3 (3.1) |
Coolant Capacity, qts (L) |
4.2 (4.0) |
Electrical System Rating, Volts |
12 |
Starting System |
Electric starting |
Alternator Rating, Amps |
35 |
PTO Operational Type |
Live |
PTO Horsepower, hp (kW) |
14.5 (10.8) |
Rear PTO Speed, rpm |
540/750 |
Rear PTO / Engine Speed, rpm |
540/2534 |
Rear PTO / Engine Speed, rpm |
850/2534 |
Mid PTO Speed, rpm |
1745/2416 |
Mid PTO / Engine Speed, rpm |
1745/2600 |
Mid PTO / Engine Speed, rpm |
2416/2600 |
Transmission Type |
Hydrostatic (high, medium, low gear shift) |
Number of Forward Gears |
Infinite (3-range) |
Number of Reverse Gears |
Infinite (3-range) |
Pump Type |
Variable displacement piston pump |
Motor Type |
Fixed displacement piston motor |
Clutch Type |
Dry single plate |
Oil Capacity, qts (L) |
19.0 (18.0) |
Maximum Forward Speed (Low), mph (kph) |
3.0 (4.8) |
Maximum Forward Speed (Medium), mph (kph) |
6.4 (10.3) |
Maximum Forward Speed (High), mph (kph) |
11.7 (18.9) |
Maximum Reverse Speed (Low), mph (kph) |
2.4 (3.8) |
Maximum Reverse Speed (Medium), mph (kph) |
5.1 (8.2) |
Maximum Reverse Speed (High), mph (kph) |
9.4 (15.1) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Manual, ball screw type |
Brakes Type |
Dry internal expanding |
Front Tires (2WD) |
4.00x12 |
Rear Tires (2WD) |
8.30x24 |
Front Tires (4WD, AG) |
6.50x10 |
Rear Tires (4WD, AG) |
12.4x16 |
Front Tires (4WD, Turf) |
24x8.50-12 |
Rear Tires (4WD, Turf) |
13.6x16 |
Front Tread (2WD), in (mm) |
32.7 (830) |
Front Tread (4WD), in (mm) |
35.5 (895) |
Rear Tread, in (mm) |
41.3 (1040) |
Hydraulic System Type |
Open Center |
Hydraulic Pump Type |
Gear |
Implement Pump Flow, gpm (Lpm) |
6.5 (24.6) |
Hydraulic Pressure, Bar (psi) |
118 (1715) |
Hydraulic Fluid Capacity, gal (L) |
4.8 (18.2) |
3-Point Hitch Category |
1 |
Lift Capacity 24" (610mm) behind pin, lb (kg) |
1015 (460) |
Lift Capacity at lift pin, lb (kg) |
1280 (580) |
Wheelbase, in (mm) |
60.4 (1535) |
Length, in (mm) |
106.7 (2710) |
Height, in (mm) |
79.6 (2020) |
Overall Width, in (mm) |
55.3 (1400) |
Ground Clearance, in (mm) |
9.3 (235) |
Weight (2WD), lb (kg) |
1580 (720) |
Weight (4WD), lb (kg) |
1695 (768) |
