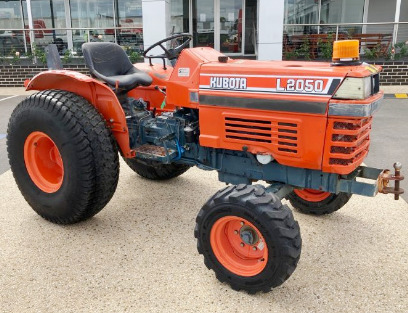

Kubota L2050 Tractor
The
Kubota L2050 is a L-series compact utility tractor. This model was manufactured
from 1989 to 1991. The Kubota L2050 driveline system components: Kubota D1102
vertical three-cylinder indirect injection water-cooled diesel engine and gear
shift transmission with 8 forward and 2 reverse gears.
A 68 cubic inches (1.1 L) engine output is 25 hp (18.6 kW), and max
torque is 64.2 Nm (47.6 lb-ft) at 1300 rpm. The maximum travel speed
(forward and reverse): 11.1 mph (17.8 kph) / 5.4 mph (8.7 kph). The open
center hydraulic system used a gear pump with a flow of 4.4 gpm (16.7
lpm) for 2WD models and 7.2 gpm (27.2 lpm) for 4WD models. The hydraulic
pressure is 155 bar (2250 psi).
The 2-wheel drive models are equipped with 6.00x14 front tires and
9.5x24 rear tires. The 7.00x16 front tires and 11.2x24 rear tires are
used for tractors with 4-wheel drive. The wheel base is 61.2" (1555 mm)
for 2WD (L2050F) models and 61.6" (1565 mm) for 4WD (L2050DT) models.
The Kubota L2050 tractor is compatible with a
Kubota BF400S front end
loader with a lift capacity to full height of 882 lbs (400 kg).
| Engine Model |
Kubota D1102 |
| Engine Type |
Vertical, water-cooled, 4-cycle diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.0 (1.11) |
| Engine Bore, in (mm) |
3.02 (76.0) |
| Engine Stroke, in (mm) |
3.23 (82.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
25.0 (18.6) |
| Rated Engine Speed, rpm |
2800 |
| Maximum Torque, Nm (ft-lbs) |
78 (57,5) |
| Compression |
18:1 |
| Slow Idle Speed, rpm |
800-850 |
| High Idle Speed, rpm |
2750 |
| Firing Order |
1-2-3 |
| Fuel Injection Timing (BTDC), deg |
25 |
| Fuel Injection Pressure, MPa (psi) |
14.7 (2135) |
| Fuel Tank Capacity, gal (L) |
7.7 (29.1) |
| Oil Capacity, qts (L) |
6,7 (6,3) |
| Coolant Capacity, qts (L) |
6,3 (6,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
45 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
20,0 (14,9) |
| PTO Speeds, rpm |
540 |
| PTO / Engine Speeds, rpm |
540/2430 |
| Transmission Type |
Gear Shift |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Transmission Oil Capacity, qt (L) |
29.5 (28,0) |
| Maximum Forward Speed, mph (kph) |
11,1 (17,8) |
| Maximum Reverse Speed, mph (kph) |
5,4 (8,7) |
| Drive Wheels |
2WD (L2050F) / 4WD (L2050DT) |
| Steering Configuration |
Front steer |
| Steering System (2WD) |
Ball type manual steering |
| Steering System (4WD) |
Integral type power steering |
| Service Brake |
Wet disc |
| Front Tire Size (2WD) |
6.00-14 |
| Rear Tire Size (2WD) |
9.5-24 |
| Front Tire Size (4WD) |
7.00-16 |
| Rear Tire Size (4WD) |
11.2-24 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow (2WD), gpm (Lpm) |
4,4 (16,7) |
| Implement Pump Flow (4WD), gpm (Lpm) |
7,2 (27,2) |
| Hydraulic Oil Capacity, gal (L) |
7,4 (28,0) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position Control |
| Standard Lift Capacity 24-in (600mm) behind pin, lb (kg) |
1435 (650) |
| Standard Lift Capacity at lift pin, lb (kg) |
1875 (850) |
| Wheel Base (2WD), in (mm) |
61,2 (1555) |
| Wheel Base (4WD), in (mm) |
61,6 (1565) |
| Length, in (mm) |
103,9 (2640) |
| Height, in (mm) |
76.2 (1930) |
| Overall Width, in (mm) |
50 (1265) |
| Ground Clearance (2WD), in (mm) |
13.6 (340) |
| Ground Clearance (4WD), in (mm) |
12,2 (311) |
| Weight, lb (kg) |
1800 (820) |
