Kubota L4610 Troubleshooting
The

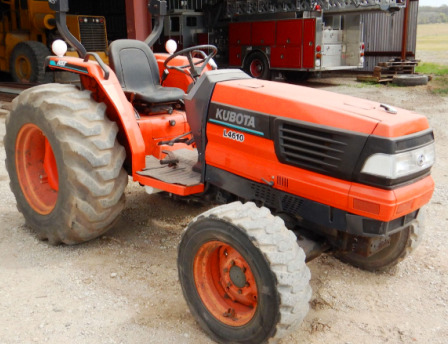

Kubota L4610 compact utility tractor was manufactured from 1999 to 2002. This
model was designed in four versions: L4610GST (Glide-shift transmission, ROPS),
L4610HST (Hydrostatic transmission, ROPS) and L4610HSTC (Hydrostatic
transmission, Cab).
The Kubota L4610 tractor is powered by 134.1 cu.in (2.2L) Kubota
V2203-EHA 4-cycle vertical 4-cylinder indirect injection water-cooled
diesel engine with a rated power of 46 hp (34.3 kW). The Kubota L4610 is
fitted with 2 transmission options: Glide Shift transmission with 8
forward and 8 reverse gears, or 3-range hydrostatic transmission with
infinite forward and reverse gears. The maximum forward speed - 17.3 mph
(27.8 km/h), maximum reverse speed - 15.4 mph (24.7 km/h).
The open center hydraulic system includes a gear pump with a flow of 9.6
gal/min (36.4 l/min). The hydraulic capacity is 10.3 gal (39 L). The
tractor is equipped with a hydrostatic power steering, wet disc brakes,
8.3x16 front tires, and 14.9x24 rear tires. The wheel base is 71.5"
(1815 mm). The tractor is compatible with the following attachments:
Kubota LA852 loader with lift capacity to max height of 2470 lbs (1120
kg), Kubota BL4690 backhoe with digging depth of 90.2" (2290 mm), 72"
rear-mount RCR72-CA finish mower, and L372CA rotary cutter.
| Engine Troubleshooting |
| Engine will not start or starts up hard |
| Plugged fuel filter - Clean the filter element |
| Fuel is not supplied from the tank to the system - Check the fuel shut-off valve |
| There is air in the fuel system - Bleed the system |
| Fuel injectors are damaged or dirty - Service or change fuel injectors |
| Fuel injection pump failure - Change pump or rebuild it |
| Low engine compression - Inspect cylinder block and change defective components |
| Engine stalls while running |
| Engine has not warmed up to the recommended temperature - Warm up the engine as required |
| Air in fuel pipes - Bleed fuel pipes |
| Improper fuel injection - Fuel injection settings required |
| Plugged fuel filter - Clean the filter or install new filter element |
| Clogged fuel injectors - Change fuel injectors |
| Fuel injection pump out of timing - Repair or replace fuel injection pump |
| Dirty fuel filter element - Change the filter element |
| Dirty or defective injector nozzles - Change injector nozzles |
| Fuel injection pump is broken - Repair or change injection pump |
| Air cleaner clogging - Change or service air cleaner element |
| Low idle speed setting is incorrect - Adjust the low idle speed |
| Fuel injection pump is not working correctly - Repair or change injection pump |
| Fuel injector nozzles are damaged - Inspect injector nozzles and change if required |
| Valve out of adjustment - Correct valve clearance needs to be set |
| Coolant level is low - Coolant needs to be refilled. If there are leaks in the system, replace worn components |
| Cooling system components are defective or system is clogged - Replace faulty parts or service cooling system |
| Lack of engine oil - Add oil to the engine crankcase |
| Improper fan belt tension or damaged belt - Adjust properly or replace the belt |
| Defective thermostat - Replace the thermostat |
| Dirty or damaged injectors - Service or change fuel injectors |
| Fuel injection pressure is incorrect - Adjust pressure to proper level |
| Dirty air filter - Change or service air filter element |
| Oil filter element clogging - Service or replace engine oil filter |
| Engine is overloaded - Shift to lower gear or reduce the load |
| Valve out of adjustment - Adjustment procedure required |
| Incorrect low idle speed adjustment - Adjust low idling as recommended |
| Dirt in the fuel pipes or hoses - Service fuel hoses and pipes |
| Engine losing compression: Inlet or outlet valves are defective - Replace the valves |
| Unadjusted fuel injection pump timing - Adjust the fuel injection pump timing correctly |
| Fuel injector nozzles are defective or dirty - Service or replace nozzles if required |
| Low engine oil level - Fill up the oil to required level |
| Coolant temperature is low - Warm up engine as required |
| Worn main bearings or crankshaft - Have bearings or crankshaft replaced |
| Broken or worn piston rings - Install new piston rings |
| Flywheel screws are loose - Tighten the screws firmly |
| Excessive engine oil consumption |
| Oil leaking: Gaskets or seals can be faulty - Change to repair leaks |
| Incorrect oil viscosity - Use proper viscosity oil |
| Stuck or worn piston rings - Have piston rings replaced |
| Valve stems or guides are damaged - Valves must be replaced |
| Cylinder liners or pistons are damaged - Inspect liners and pistons, change as necessary |
| Electrical System Troubleshooting |
| Battery does not charge |
| Worn-out battery - Battery change required |
| Damaged battery wiring harness - Inspect wiring for damage, replace or repair |
| Battery cables and terminals are corroded or loose - Clean or tighten cables and terminals |
| Belt is defective or belt tension is improperly adjusted Adjust belt tension correctly or change belt |
| Starter motor cranks slow |
| Battery voltage is low - Low battery charging, charge as required |
| Battery discharges quickly - Service battery or change it |
| Bad battery cable harness - Inspect cables for malfunctions, repair or change |
| Loose or corroded cables and terminals - Tighten or clean terminals and cables |
| Low battery power - Battery is drained, recharge it |
| Drained or faulty battery - Replace or charge as required |
| Starter motor failure - Replace or repair starter |
| Improperly connected or disconnected cables - Check battery cables and connect properly |
| Transmission Troubleshooting |
| Difficulty shifting gears |
| Clutch is unadjusted or worn - Clutch needs to be replaced or adjusted |
| Gear shift linkage is stuck or worn - Replace or repair the shift linkage |
| Shift forks are worn or damaged - Change the shift forks |
| Gearshift mechanism is worn out - Repair or replace worn components if required |
| Transmission oil pressure is low |
| Not enough fluid in transmission - Fill system with correct transmission fluid level |
| Transmission fluid filter element is dirty (if fitted) - Clean or replace the transmission fluid filter |
| Relief valve sticking - Install a new valve |
| Transmission makes excessive noise |
| Damaged or worn bearings - Faulty bearings should be replaced |
| Not enough fluid in transmission - Check transmission fluid level and add it as required |
| Contaminated transmission oil - Transmission oil must be changed |
| Defective gears or incorrect backlash - Change worn gears or set backlash correctly |
| Bent or worn shift forks - Replace defective shift forks |
| Seals or gaskets are damaged - Replace worn seal or gaskets |
| Cracked transmission housing - Housing needs to be replaced |
| Hydrostatic Transmission Troubleshooting |
| Hydrostatic transmission is making noise |
| Fluid level is too low or fluid is dirty - Add the fluid to proper level or pour fresh fluid |
| Defective or out of adjustment speed control rod linkage - Change or adjust rod linkage |
| Relief valve failure - Change relief valve |
| Transmission overload - Reduce transmission load |
| Worn or damaged transmission components - Inspect transmission parts for malfunctions and change if required |
| Transmission oil overheats |
| Insufficient fluid supply - Fill the transmission housing with fluid |
| Transmission fluid filter is dirty - Change or service the transmission fluid filter |
| Cooling components are clogged or damaged - Inspect all cooling components and replace or repair if necessary |
| Transmission overloaded - The load should be reduced |
| Not enough fluid in transmission - Add transmission fluid as required |
| Charge pressure is insufficient - Test charge pressure |
| Defective or worn relief valve - Change relief valve |
| Seals or gaskets are damaged - Install new components |
| Transmission housing internal pressure is excessive - Inspect transmission parts for malfunction and change if required |
| Oil return pipe is clogged - Check pipe and clean if necessary |
| Hydraulics Troubleshooting |
| Hydraulic system is too hot |
| The system pressure has not been corrected - Make the correct settings |
| Unadjusted or defective main relief valve - Replace or set up the relief valve |
| Hydraulic fluid is contaminated - Fill up with new hydraulic fluid |
| Air leaks in hydraulic system - Inspect the suction pipe, fittings, and pump seals |
| Low hydraulic system pressure |
| Hydraulic fluid level is insufficient - Add fluid to the hydraulic system |
| Hydraulic oil filter element clogging - Service the hydraulic filter or change if required |
| Damaged hydraulic oil pump - Test pump flow rate and replace pump if required |
| Faulty or incorrect setting hydraulic control valve - Replace or set properly |
| Hydraulic cylinder is defective - Check cylinder components for wear or damage and change if necessary |
| Leakage in hydraulic pipes - Find leaks in hydraulic system and repair it |
| Hitch fails to lift or lifts slowly |
| Lack of hydraulic fluid - Check and refill the hydraulic fluid |
| Hydraulic oil is too cold - Allow oil to warm |
| Hydraulic fluid filter clogging - Service or replace the hydraulic filter |
| Hydraulic pump is defective - Test the pump flow rate and install new pump if required |
| Defective or misadjusted main relief valve - Adjust relief valve or change if required |
| Hydraulic control valve is not set properly or defective - Change or set correctly |
| Hydraulic cylinder is broken - Inspect cylinder parts for wear or damage and replace if required |
| Suction pipe is damaged or loose - Repair or change |
| 3-point hitch won't drop or drops slowly |
| Hydraulic spool valve is not set properly or defective - Set properly or replace |
| Defective hydraulic cylinder - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
| Damaged lift arm shaft - Install a new shaft |
| The hitch has any internal mechanical damage - Replace defective or worn hitch parts |
| Hitch lowering or lifting is not smoothly |
| Air trapped in the hydraulic system - Check the suction line, pump seals, and fittings |
| Contaminated hydraulic fluid - Change hydraulic fluid |
| Faulty hydraulic oil pump - Check the pump performance and replace it if required |
| Hydraulic control valve is defective or set improper - Set correctly or replace |
| Hydraulic cylinder is faulty - Inspect cylinder parts for wear or damage and replace if required |
| Steering System Troubleshooting |
| Steering is hard |
| Damaged or improperly installed steering column - Reinstall or replace the steering column |
| Air in steering system - Need to bleed air |
| Toe-in adjustment is incorrect - Adjust toe-in correctly |
| Low tire pressure - Inflate the tires |
| Damaged hydraulic steering pump - Install a new steering pump |
| Hydrostatic steering unit has wear or malfunction - Inspect and change as required |
| Relief valve is defective or seized - Flush relief valve or change if necessary |
| Low steering fluid level - Fill the steering system with fluid |
| Steering system oil leak - Tighten joints of hydraulic pipes and hoses in steering system |
| Excessive steering wheel play |
| Steering column coupling or shaft has maximum wear - Replace defective part |
| Damaged or worn hydrostatic steering unit - Check and replace as required |
| Faulty steering pump - Steering pump needs to be repaired or replaced |
| Steering tie-rod ends or linkage are worn - Replace failed component |
| Front wheels wander to left or right |
| Tires are not properly inflated - Inflate tires as required |
| Not adjusted toe-in - Adjust toe-in properly |
| Steering tie-rod ends or linkage are defective - Change damaged part |
| Worn or damaged hydrostatic steering unit - Inspect and change as required |
| Worn steering cylinder - Repair or replace steering cylinder |
| Damaged or improperly adjusted or worn front hub bearings - Replace the bearings or adjust it properly |
