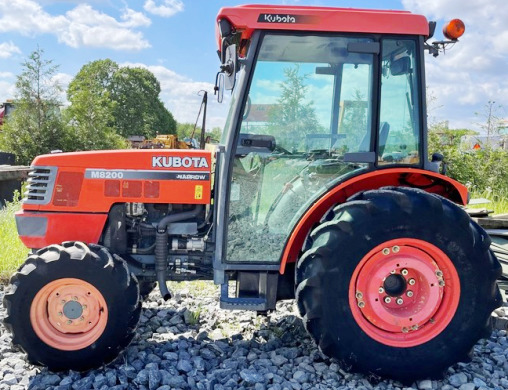

Kubota M8200 Tractor
The
Kubota M8200 is a 2WD or 4WD utility tractor from M-series. Thid model was
manufactured between 1997 and 2005. The Kubota M8200 tractor is powered by 202.1
cu.in (3.3L) Kubota V3300 4-stroke 4-cylinder direct Injection naturally
aspirated liquid-cooled disel engine with a rated power of 85.3 hp (63.6 kW).
The Kubota M8200 is fitted with two types of transmission. Type 1:
Synchronized shuttle transmission with 8 forward and 8 reverse gears.
Type 2: Power shuttle transmission with 8 forward and 8 reverse gears.
The maximum forward speed - 20.7 mph (33.3 km/h), maximum reverse speed
- 20.7 mph (33.3 km/h).
The open center hydraulic system used a gear pump with a flow rate of 17
gallons per minute (64.5 liters per minute). The main relief pressure is
195 bar (2825 psi). The M8200 is equipped with a hydrostatic power
steering, mechanical wet disc brakes, 7.50-18 (AG) or 9.5L-15 (Turf) 2WD
front tires, 12.4-24 (AG) or 27x8.50-15 (Industrial) 4WD front tires,
12.4-24 (AG) or 18.4-26 (Turf) 2WD rear tires, and 18.4-30 (AG) or
15-19.5 (Industrial) 4WD rear tires.
The wheelbase is 88.6" (2250 mm). The tractor is compatible with a
Kubota LA1251 front-end loader with lift capacity to full height of 2755
lbs (1250 kg), or Kubota LA1301 front-end loader with lift capacity to
full height of 2755 lbs (1250 kg).
| Engine Model |
Kubota V3300 |
| Engine Type |
4-Stroke, Four-cylinder diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
202.1 (3.30) |
| Engine Bore, in (mm) |
3.86 (98.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
85.3 (63.6) |
| Rated Engine Speed, rpm |
2600 |
| Compression |
22.6:1 |
| Firing Order |
1-3-4-2 |
| Fuel Injection Pump |
Bosch "Mini" Type |
| Governor |
Mechanical |
| Nozzle |
Bosch "Throttle" Type |
| Lubricating System |
Forced Lubricating by Trochoid Pump |
| Fuel Tank Capacity (ROPS), gal (L) |
23.8 (90.0) |
| Fuel Tank Capacity (Cab), gal (L) |
29.1 (110.0) |
| Oil Capacity, qts (L) |
11.3 (10.7) |
| Coolant Capacity, qts (L) |
9.5 (9.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/60 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
73.0 (54.4) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/2300 |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Single dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity, qts (L) |
54.9 (52.0) |
| Maximum Forward Speed, mph (kph) |
20.7 (33.3) |
| Maximum Reverse Speed, mph (kph) |
20.7 (33.3) |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Hydraulic wet disc |
| Oil Capacity, qts (L) |
54.9 (52.0) |
| Maximum Forward Speed, mph (kph) |
20.7 (33.3) |
| Maximum Reverse Speed, mph (kph) |
20.7 (33.3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Mechanical wet disc |
| Front Tire Size (2WD) |
7.50x18 |
| Rear Tire Size (2WD) |
12.4x24 |
| Front Tire Size (4WD) |
12.4x24 |
| Rear Tire Size (4WD) |
18.4x30 |
| Front Track Width (2WD), in (mm) |
56.7-80.3 (1440-2030) |
| Front Track Width (4WD), in (mm) |
55.9-59.8 (1410-1510) |
| Rear Track Width, in (mm) |
59.8-75.6 (1510-1920) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
17.0 (64.5) |
| Hydraulic Fluid Capacity, gal (L) |
13.7 (52.0) |
| Hydraulic Pressure, Bar (psi) |
195 (2825) |
| Number of Standard Remote Valves |
1/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position control and top-link draft sensing |
| Standard Lift Capacity 24" (600mm) behind pin, lb (kg) |
4630 (2100) |
| Standard Lift Capacity at lift pin, lb (kg) |
5560 (2520) |
| Wheelbase, in (mm) |
88.6 (2250) |
| Length (2WD), in (mm) |
152.6 (3870) |
| Length (4WD), in (mm) |
149.8 (3800) |
| Height (ROPS), in (mm) |
97.4 (2470) |
| Height (Cab), in (mm) |
97.6 (2470) |
| Overall Width, in (mm) |
78 (1980) |
| Ground Clearance, in (mm) |
19.7 (500) |
| Weight (ROPS, 2WD), lb (kg) |
5585 (2535) |
| Weight (ROPS, 4WD), lb (kg) |
6025 (2730) |
| Weight (Cab, 2WD), lb (kg) |
6175 (2800) |
| Weight (Cab, 4WD), lb (kg) |
6615 (3000) |
