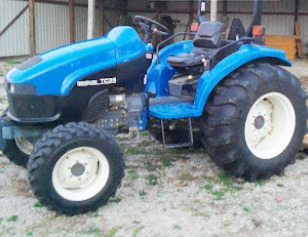

New Holland TC35 Tractor
The
New Holland TC35 compact utility tractor was manufactured from 2000 to 2003. The
New Holland TC35 powerline components: a 101 cu.in (1.65 L) Shibaura N843L
3-cylinder liquid-cooled diesel engine and synchronized shuttle shift
transmission with 12 forward and 12 reverse gears.
The engine has a cylinder bore of 3.31" (84 mm), piston stroke of 3.94"
(100 mm), and rated power of 35 hp (26.1 kW). Max forward speed - 15.6
mph (25 km/h), maximum reverse speed - 16.8 mph (27 km/h). The open
center hydraulic system includes a gear pump with a flow rate of 9.8 gpm
(37.1 lpm).
The main relief pressure is 157 bar (2275 psi). The 2-wheel drive models
are fitted with 5.50x16 front tires and 13.6x24 rear tires. The 7.00x16
front tires and 14.9x24 rear tires are used for tractors with 4-wheel
drive. The wheel base is 73.5" (1867 mm) for models with 2WD and 81"
(2057 mm) for models with 4WD. The tractor can be equipped with the
following attachments: a New Holland 16LA front-end loader with a lift
capacity to max height of 1800 lbs (816 kg), or
New Holland 17LA
front-end loader with a lift capacity to max height of 1760 lbs (798
kg).
| Engine Model |
Shibaura N843L |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
101 (1,65) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,94 (100,0) |
| Rated Engine Power, hp (kW) |
35,0 (26,1) |
| Rated Engine Speed, rpm |
2600 |
| Low Idle Speed, rpm |
1025 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-2-3 |
| Fuel Pump Type |
In-Line |
| Fuel Tank Capacity, gal (L) |
13,0 (54,5) |
| Oil Capacity, qts (L) |
6,1 (5,8) |
| Coolant Capacity, qts (L) |
7,8 (7,4) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Type |
Negative ground, 600 cca |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
29,6 (22,1) |
| PTO Speed, rpm |
540 |
| PTO Shaft, in (mm) |
1,38 (35,0) |
| PTO / Engine Speeds, rpm |
540/2400 |
| Transmission Type |
Synchronized Shuttle Shift |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Maximum Speed (Forward), mph (kph) |
15,6 (25,0) |
| Maximum Speed (Reverse), mph (kph) |
16,8 (27,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Wet Disc |
| Front Tire Size (2WD) |
5.50x16 |
| Rear Tire Size (2WD) |
13.6x24 |
| Front Tire Size (4WD) |
7.00x16 |
| Rear Tire Size (4WD) |
14.9x24 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9,8 (37,1) |
| Steering Pump Flow, gpm (Lpm) |
5,1 (19,3) |
| Total Flow, gpm (Lpm) |
14,8 (56,3) |
| Hydraulic Pressure, Bar (psi) |
157 (2275) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position Control |
| Standard Lift Capacity 24" (600mm) behind pin, lb (kg) |
2024 (918) |
| Wheelbase (2WD), in (mm) |
73,5 (1867) |
| Wheelbase (4WD), in (mm) |
81,0 (2057) |
| Length, in (mm) |
125,2 (3180) |
| Height, in (mm) |
94,5 (2400) |
| Overall Width, in (mm) |
61,3 (1550) |
| Ground Clearance (2WD), in (mm) |
14 (350) |
| Ground Clearance (4WD), in (mm) |
11 (279) |
| Front Tread, in (mm) |
46,4 (1170) |
| Rear Tread, in (mm) |
47,5 (1200) |
| Weight (2WD), lb (kg) |
2950 (1336) |
| Weight (4WD), lb (kg) |
3100 (1400) |
