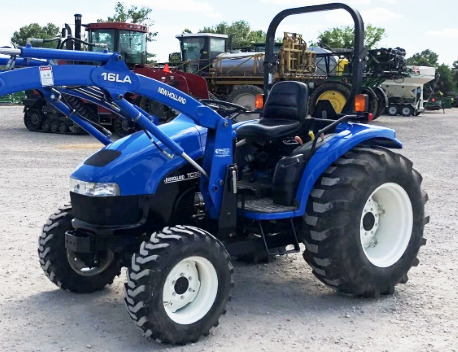

New Holland TC35D Tractor
The
New Holland TC35D compact utility tractor from Boomer TC-series was manufactured
between 2000 and 2003. The New Holland TC35D driveline consists of a 101 cubic
inches (1.65L) Shibaura N843L four-cycle vertical three-cylinder water-cooled
diesel engine with a rated power of 35 hp (26.1 kW), and two-range hydrostatic
transmission with infinite forward and reverse gears.
The maximum forward speed - 16.3 mph (26 kph), max reverse speed - 15.9
mph (25.5 kph). The open center hydraulic system used a gear pump with a
rated capacity of 9.8 gallons per minute (37.1 liters per minute).
The hydraulic pressure is 160 bar (2275 psi). The New Holland TC35D is
equipped with a power steering system, wet disc brakes, 27x8.50-15
(Turf) or 10x16.5 (Industrial) front tires, and 44x18.00-20 (Turf) or
17.5Lx24 (Industrial) rear tires. The wheel base is 73.5" (1867 mm) for
FWD models and 81" (2057 mm) for SuperSteer models. Compatible
attachments for the tractor: a New Holland 16LA loader with a maximum
lift height of 105" (2660 mm), and New Holland 17LA loader with a
maximum lift height of 106" (2690 mm).
| Engine Model |
Shibaura N843L |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
101 (1,65) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,94 (100,0) |
| Rated Engine Power, hp (kW) |
35,0 (26,1) |
| Rated Engine Speed, rpm |
2600 |
| Low Idle Speed, rpm |
1025 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-2-3 |
| Fuel Pump Type |
In-Line |
| Cooling System Type |
Pressurized Liquid with Recirculating Bypass |
| Water Pump Type |
Centrifugal |
| Drive Belt |
V-Belt |
| Fuel Tank Capacity, gal (L) |
13,0 (54,5) |
| Oil Capacity, qts (L) |
6,1 (5,8) |
| Coolant Capacity, qts (L) |
7,8 (7,4) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Type |
Negative ground, 600 cca |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
27,7 (20,8) |
| Rear PTO / Engine Speeds, rpm |
540/2400 |
| Rear PTO Shaft, in (mm) |
1,38 (35,0) |
| Mid PTO / Engine Speeds, rpm |
2000/2420 |
| Mid PTO Shaft, in (mm) |
1,0 (25,3) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Number of Motor Speeds |
2 |
| Motor Displacement (Hi/Lo), cu.in (L) |
1,34 (0,02) / 2,27 (0,04) |
| Motor Speed Shift |
Electric Switch |
| Maximum Forward Speed, mph (kph) |
16,3 (26,0) |
| Maximum Reverse Speed, mph (kph) |
15,9 (25,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Wet Disc |
| Front Tire Size (AG) |
8.00x16 |
| Rear Tire Size (AG) |
14.9x24 |
| Front Tire Size (Turf) |
27x8.50-15 |
| Rear Tire Size (Turf) |
44x18-20 |
| Front Tire Size (Industrial) |
10x16.5 |
| Rear Tire Size (Industrial) |
17.5Lx24 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9,8 (37,1) |
| Steering Pump Flow, gpm (Lpm) |
5,3 (19,4) |
| Hydraulic Pressure, Bar (psi) |
160 (2275) |
| Number of Standard Remote Valves (Rear/Mid) |
3/2 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Hydraulic Position Control and Top Link Sensing |
| Standard Lift Capacity 24" (600mm) behind pin, lb (kg) |
2025 (920) |
| Drop Rate Control |
Standard |
| Wheelbase (FWD), in (mm) |
73,5 (1867) |
| Wheelbase (SuperSteer), in (mm) |
81,0 (2057) |
| Length, in (mm) |
116,3 (2955) |
| Height, in (mm) |
94,5 (2400) |
| Overall Width, in (mm) |
66,5 (1690) |
| Ground Clearance (FWD), in (mm) |
13 (330) |
| Ground Clearance (SuperSteer), in (mm) |
11 (279) |
| Turning Radius (FWD), in (mm) |
127,5 (3240) |
| Turning Radius (SuperSteer), in (mm) |
113 (2870) |
| Weight (FWD), lb (kg) |
2784 (1265) |
| Weight (SuperSteer), lb (kg) |
2953 (1342) |
