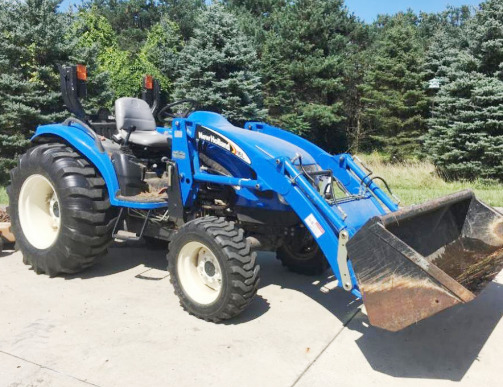

New Holland TC40DA Tractor
The
New Holland TC40DA is a 4WD (4x4) compact utility tractor from Boomer TC-A
series. This model was manufactured between 2003 to 2008. The components of New
Holland TC40DA driveline system: a Shibaura N844 four-cylinder liquid-cooled
diesel engine and 2-range hydrostatic transmission with infinite forward and
reverse gears.
A 121.7 cu.in (2 L) engine has a cylinder bore of 3.31" (84 mm), piston
stroke of 3.54" (90 mm), and rated power of 40 hp (29.8 kW). Max.
forward or reverse speed - 13.6 mph (21.9 km/h).
Open center hydraulic system used a gear pump with a flow of 9.8 gal/min
(37.1 l/min). The main relief pressure is 160 bar (2275 psi). The New
Holland TC40DA tractor is fitted with 27x8.5-15 front tires and
44x18.0-20 rear tires. The wheelbase is 73.6" (1870 mm) for 4WD models
and 81" (2060 mm) for SuperSteer models.
The tractor can be equipped with the following attachments: a
New
Holland 16LA loader with lift capacity to full height of 2000 lbs (907
kg), 17LA loader (available with SuperSteer front axle) with lift
capacity to max height of 1955 lbs (886 kg), New Holland 757C Backhoe
with 2-foot flat digging depth of 90" (2280 mm), and 758C Backhoe with
2-foot flat digging depth of 102" (2590 mm).
| Engine Model |
Shibaura N844 |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
121,7 (2,0) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,54 (90,0) |
| Rated Engine Power, hp (kW) |
40,0 (29,8) |
| Rated Engine Speed, rpm |
2600 |
| Low Idle Speed, rpm |
1025 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-3-4-2 |
| Fuel Pump Type |
In-Line |
| Cooling System Type |
Pressurized Liquid with Recirculating Bypass |
| Water Pump Type |
Centrifugal |
| Drive Belt |
V-Belt |
| Fuel Tank Capacity, gal (L) |
13,0 (54,5) |
| Oil Capacity, qts (L) |
6,3 (6,0) |
| Coolant Capacity, qts (L) |
8,3 (7,9) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Type |
Negative ground, 600 cca |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
27,7 (20,8) |
| Rear PTO / Engine Speeds, rpm |
540/2400 |
| Rear PTO Shaft, in (mm) |
1,38 (35,0) |
| Mid PTO / Engine Speeds, rpm |
2000/2420 |
| Mid PTO Shaft, in (mm) |
1,0 (25,3) |
| Transmission Type |
Hydrostatic |
| Number of Motor Speeds |
2 |
| Number of Transmission Ranges |
2 |
| Motor Displacement (Hi/Lo), cu in (L) |
1,34 (0,02) / 2,27 (0,04) |
| Motor Speed Shift |
Electric Switch |
| Maximum Speed Forward, mph (kph) |
13,6 (21,9) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Wet Disc |
| Brake Disc Diameter, in (mm) |
6,9x5,6 (175x143) |
| Front Tire Size |
27x8.5-15, 4PR, R3 |
| Rear Tire Size |
44x18-20, 4 PR, R3 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9,8 (37,1) |
| Steering Pump Flow, gpm (Lpm) |
5,3 (19,4) |
| Hydraulic Pressure, Bar (psi) |
160 (2275) |
| Number of Standard Remote Valves (Rear/Mid) |
3/2 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Hydraulic Position Control and Top Link Sensing |
| Standard Lift Capacity 24-in (600mm) behind pin, lb (kg) |
2330 (1060) |
| Drop Rate Control |
Standard |
| Wheelbase (FWD), in (mm) |
73,6 (1870) |
| Wheelbase (SuperSteer), in (mm) |
81,0 (2060) |
| Length, in (mm) |
117 (2971) |
| Height, in (mm) |
95 (2413) |
| Overall Width, in (mm) |
72,7 (1850) |
| Ground Clearance (FWD), in (mm) |
14 (356) |
| Ground Clearance (SuperSteer), in (mm) |
11 (279) |
| Turning Radius (FWD), in (mm) |
127,5 (3240) |
| Turning Radius (SuperSteer), in (mm) |
113 (2870) |
| Weight (FWD), lb (kg) |
2860 (1300) |
| Weight (SuperSteer), lb (kg) |
3030 (1377) |
