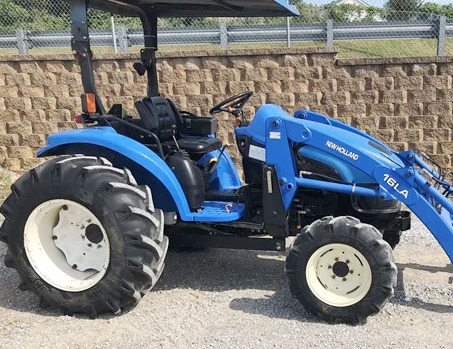

New Holland TC45 Tractor
The
New Holland TC45 compact utility tractor was manufactured from 2001 to 2003. The
New Holland TC45 tractor is equipped with a 135.2 cu.in (2.2L) Shibaura N844L
four-cylinder indirect injection naturally aspirated liquid-cooled diesel
engine.
The engine has a cylinder bore of 3.32" (84 mm), piston stroke of 3.94"
(100 mm), and rated power of 45 hp (33.6 kW). The mechanical
transmission includes a single plate dry clutch and synchronized shuttle
shift gearbox with 12 forward and 12 reverse speeds. Max travel speed
(forward/reverse): 16.5 mph (26.4 km/h) and 18.5 mph (29.6 km/h). The
open center hydraulic system includes a gear pump with a flow rate of
9.8 gpm(37.1 lpm). The hydraulic pressure is 157 bar (2275 psi).
The 2-wheel drive models are equipped with 5.50x16 front tyres and
13.6x24 rear tyres. The 7.00x16 front tyres and 14.9x24 rear tyres fit
4-wheel drive tractors. The wheel base is 73.5 in (1867 mm) for 4x2
(2WD) models and 81 in (2057 mm) for 4x4 (4WD) models. The tractor is
compatible with the following attachments: a
New Holland 16LA loader
with a lift capacity to full height of 2000 lbs (907 kg), or
New Holland
17LA loader with a lift capacity to full height of 1760 lbs (789 kg).
| Engine Model |
Shibaura N844L |
| Engine Type |
4-Stroke, liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
135,2 (2,2) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,94 (100,0) |
| Rated Engine Power, hp (kW) |
45,0 (33,6) |
| Rated Engine Speed, rpm |
2600 |
| Low Idle Speed, rpm |
1025 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-3-4-2 |
| Aspiration |
Naturally aspirated |
| Fuel System |
Indirect injection |
| Fuel Pump Type |
In-Line |
| Fuel Tank Capacity, gal (L) |
13,0 (54,5) |
| Oil Capacity, qts (L) |
6,3 (6,0) |
| Coolant Capacity, qts (L) |
8,4 (8,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Type |
Negative ground, 600 cca |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
39,6 (29,5) |
| PTO Shaft, in (mm) |
1,38 (35,0) |
| PTO Speeds, rpm |
540 |
| PTO / Engine Speeds, rpm |
540/2400 |
| PTO Clutch |
Multi discs wet type |
| Transmission Type |
Synchronized Shuttle Shift |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Maximum Speed (Forward), mph (kph) |
16,5 (26,4) |
| Maximum Speed (Reverse), mph (kph) |
18,5 (29,6) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Wet Disc |
| Front Tire Size (2WD) |
5.50x16 |
| Rear Tire Size (2WD) |
13.6x24 |
| Front Tire Size (4WD) |
7.00x16 |
| Rear Tire Size (4WD) |
14.9x24 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9,8 (37,1) |
| Steering Pump Flow, gpm (Lpm) |
5,1 (19,3) |
| Total Flow, gpm (Lpm) |
14,8 (56,3) |
| Hydraulic Pressure, Bar (psi) |
157 (2275) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position Control |
| Standard Lift Capacity 24" (600 mm) behind pin, lb (kg) |
2325 (1055) |
| Wheelbase (2WD), in (mm) |
73,5 (1867) |
| Wheelbase (4WD), in (mm) |
81,0 (2057) |
| Length, in (mm) |
125,2 (3180) |
| Height, in (mm) |
94,5 (2400) |
| Overall Width, in (mm) |
61,3 (1550) |
| Ground Clearance (2WD), in (mm) |
14 (350) |
| Ground Clearance (4WD), in (mm) |
11 (279) |
| Front Tread, in (mm) |
46,4 (1170) |
| Rear Tread, in (mm) |
47,5 (1200) |
| Weight (2WD), lb (kg) |
3200 (1450) |
| Weight (4WD), lb (kg) |
3350 (1520) |
