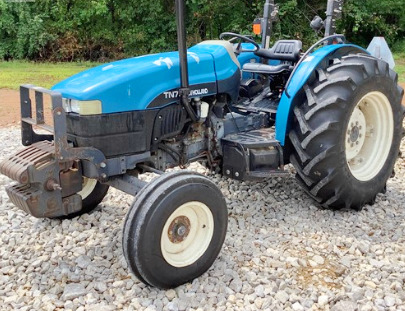

New Holland TN75 Tractor
The
New Holland TN75 utility tractor was manufactured from 1999 to 2003. The New
Holland TN75 tractor is powered by 179 cu.in (2.9L) Iveco 8035.25 3-cylinder
direct injection turbocharged liquid-cooled diesel engine with a rated power of
72.4 Hp (54 kW) and 218 Nm (296 lb-ft) of peak torque at 1400 rpm.
The New Holland TN75 is fitted with 3 types of transmission. Type 1: 8x8
mechanical shuttle transmission. Type 2: 16x16 Synchro Command Plus
partially synchronized transmission. Type 3: 32x16 Dual Command
two-speed power shift transmission. Max travel speed (forward and
reverse): 18.7 mph (30.2 km/h) / 18.1 mph (29.2 km/h). The open center
hydraulic system used a gear pump with a rated fluid flow of 16.9 gpm
(64 lpm). The hydraulic pressure is 190 bar (2755 psi).
The 2-wheel drive models are equipped with 7.50x16 front tyres and
14.9x28 rear tyres. The 8.3x24 front tyres and 14.9x28 rear tyres fit
4-wheel drive tractors. The wheelbase is 81.5" (2070 mm) for models with
2WD, 78.9" (2000 mm) for models with 4WD, and 93.5" (2370 mm) for models
with SuperSteer axle. Compatible attachments for the tractor: a
New
Holland 32LA front-end loader with a lift capacity to full height of
3400 lbs (1542 kg), or New Holland 33LA front-end loader with a lift
capacity to full height of 3523 lbs (1598 kg).
| Engine Model |
Iveco 8035.25 |
| Engine Type |
Three cylinder 4 stroke direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
179,0 (2,93) |
| Engine Bore, in (mm) |
4,10 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
75,0 (55,9) |
| Rated Engine Power, hp (kW) |
72,4 (54,0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
218 (296) |
| Torque Speed, rpm |
1400 |
| Compression |
18:1 |
| Fuel Tank Capacity, gal (L) |
19,8 (75,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
63,9 (47,7) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/2198 |
| PTO / Engine Speed, rpm |
1000/2144 |
| Transmission Type |
Mechanical Shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
11 (280) |
| Maximum Forward Speed, mph (kph) |
18,7 (30,2) |
| Maximum Reverse Speed, mph (kph) |
18,1 (29,2) |
| Transmission Type |
Synchro Command Plus |
| Gearbox Type |
16F/16R, partially synchronized |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type (Mechanical Shuttle) |
Dry disc |
| Clutch Type (Power Shuttle) |
Wet disc |
| Maximum Forward Speed, mph (kph) |
17,2 (27,7) |
| Maximum Reverse Speed, mph (kph) |
17,1 (27,5) |
| Transmission Type |
Dual Command |
| Gearbox Type |
32F/16R, two-speed power shift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
17,2 (27,7) |
| Maximum Reverse Speed, mph (kph) |
17,1 (27,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-16 |
| Rear Tire Size (2WD) |
14.9-28 |
| Front Tire Size (4WD) |
8.3-24 |
| Rear Tire Size (4WD) |
14.9-28 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
16,9 (64,0) |
| Steering Pump Flow, gpm (Lpm) |
7,2 (27,3) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Hydraulic Capacity, gal (L) |
11,1 (42,0) |
| Number of Standard Remote Valves |
2 to 3 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity 610 mm behind pin, lb (kg) |
3960 (1800) |
| Wheelbase (2WD), in (mm) |
81,5 (2070) |
| Wheelbase (4WD), in (mm) |
78,9 (2000) |
| Wheelbase (SuperSteer), in (mm) |
93,5 (2370) |
| Length, in (mm) |
157 (3990) |
| Height (ROPS), in (mm) |
95,1 (2410) |
| Height (Cab), in (mm) |
90,8 (2300) |
| Overall Width, in (mm) |
67.2 (1700) |
| Weight (2WD, ROPS), lb (kg) |
4700 (2130) |
| Weight (2WD, Cab), lb (kg) |
5065 (2300) |
| Weight (4WD, ROPS), lb (kg) |
5175 (2350) |
| Weight (4WD, Cab), lb (kg) |
5665 (2570) |
| Weight (SuperSteer, ROPS), lb (kg) |
5370 (2435) |
| Weight (SuperSteer, Cab), lb (kg) |
5810 (2635) |
