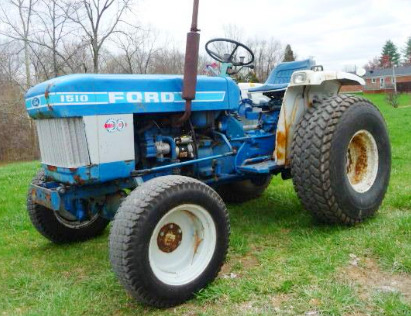

Ford 1510 Tractor
The
Ford 1510 is a 2WD or 4WD compact utility tractor from Ten compact series. This
model was manufactured by Shibaura built between 1983 and 1986. The components
of Ford 1510 powerline system: Shibaura K773 three-cylinder liquid cooled diesel
engine and 12x4 unsynchronized gear transmission, or 12x4 partially synchronized
gear transmission.
A 68.2 cu.in engine power is 22 hp (16.4 kW), and maximum torque is 58
Nm (43 lb-ft) at 1600 rev/min. The maximum forward speed - 12.5 mph (20.1
km/h), max. reverse speed - 10.3 mph (16.5 km/h).
The open center hydraulic system includes a gear pump with fluid flow
rate of 6.6 gpm (25 lpm). The main relief pressure is 147 bar (2135
psi). The 2-wheel drive models are equipped with 4.00x15 or 25x8.50-12
front tires and 9.50x24 rear tires. The 6.00x14 or 25x8.50-14 front
tires and 9.50x24 rear tires are used for tractors with 4-wheel drive.
The wheelbase is 63" (1600 mm).
Compatible attachments for the Ford 1510 tractor: a 60" mid-mount
3-blade mower deck, 60" rear-mount two-stage snowblower with a hydraulic
lift, Ford 770A front end loader with a max lift height of 87" (2200
mm), and Ford 757A backhoe with a digging depth of 76.5" (1940 mm).
| Engine Model |
Shibaura K773 |
| Engine Type |
3-cylinder, liquid cooled diesel |
| Number of Cylinders |
3, Inline |
| Displacement, cu in (L) |
68.2 (1.117) |
| Engine Bore, in (mm) |
3.03 (77.0) |
| Engine Stroke, in (mm) |
3.15 (80.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
2800 |
| Low Idle Speed, rpm |
750-850 |
| High Idle Speed, rpm |
3050 |
| Maximum Torque, Nm (ft-lbs) |
58 (43) |
| Torque Speed, rpm |
1600 |
| Compression |
23:1 |
| Firing Order |
1-2-3 |
| Air Cleaner |
Dry type |
| Pre-Heating |
Glow plugs |
| Valve Clearance, in (mm) |
0.008 (0.20) |
| Valve Seat Angle, degrees |
45 |
| Injection Timing (Static BTDC), degrees |
22 |
| Injection Opening Pressure, MPa (psi) |
117.6 (1705) |
| Fuel Tank Capacity, gal (L) |
6.9 (26.1) |
| Oil Capacity, qts (L) |
4.2 (4.0) |
| Coolant Capacity, qts (L) |
3.2 (3.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
35 |
| PTO Operational Type |
Transmission / Live (Opt) |
| PTO Horsepower, hp (kW) |
19.5 (14.5) |
| Rear PTO Speed, rpm |
540 |
| Rear PTO / Engine Speed, rpm |
540/2422 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry Disc |
| Clutch Disc Diameter, in (mm) |
8.54 (216) |
| Oil Capacity, qts (L) |
18.5 (19.5) |
| Maximum Forward Speed, mph (kph) |
12.5 (20.1) |
| Maximum Reverse Speed, mph (kph) |
8.7 (14.0) |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry Disc |
| Oil Capacity, qts (L) |
18.5 (19.5) |
| Maximum Forward Speed, mph (kph) |
12.5 (20.1) |
| Maximum Reverse Speed, mph (kph) |
10.3 (16.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual / Power |
| Service Brake |
Differential mechanical drum |
| Front Tire Size (2WD) |
4.00-15 |
| Front Tire Size (4WD) |
6.00-14 |
| Rear Tire Size |
9.5-24 |
| Front Tire Size (2WD, Turf) |
25x8.50-12 |
| Front Tire Size (4WD, Turf) |
25x8.50-14 |
| Rear Tire Size (Turf) |
13.6-16 |
| Front Tread (2WD), in (mm) |
39.4-52 (1000-1320) |
| Front Tread (4WD), in (mm) |
42.1 (1060) |
| Rear Tread (2WD), in (mm) |
41.2-52 (1040-1320) |
| Rear Tread (4WD), in (mm) |
41.3-47.3 (1040-1200) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
6.6 (25.0) |
| Hydraulic Pressure, Bar (psi) |
147 (2135) |
| Hydraulic System Capacity, gal (L) |
6.9 (26.0) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24 (610 mm) behind pin, lb (kg) |
1160 (525) |
| Standard Lift Capacity at lift pin, lb (kg) |
1435 (650) |
| Wheelbase, in (mm) |
63 (1600) |
| Length, in (mm) |
111.6 (2830) |
| Overall Width (2WD), in (mm) |
50.3 (1270) |
| Overall Width (4WD), in (mm) |
50.5 (1280) |
| Height (2WD, Exhaust), in (mm) |
72.5 (1840) |
| Height (4WD, Exhaust), in (mm) |
72 (1820) |
| Height (ROPS), in (mm) |
85.9 (2180) |
| Ground Clearance (2WD), in (mm) |
13 (330) |
| Ground Clearance (4WD), in (mm) |
11.2 (280) |
| Operating Weight, lb (kg) |
2290 (1040) |
| Ballasted Weight, lb (kg) |
3205 (1455) |
