Ford 2000 Tractor Maintenance
The

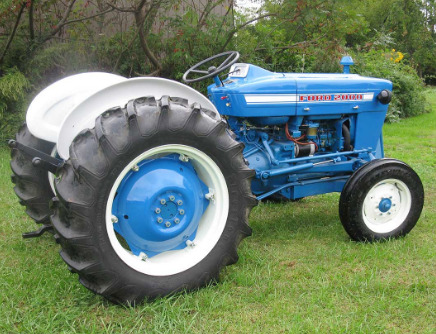

Ford 2000 is a 2WD (4x2) utility tractor. This model was manufactured from 1965
to 1975. The 2000 tractor is powered by Ford 2.6L vertical 3-cylinder water
cooled gasoline, or diesel engine with a maximum output power of 36 Hp (26.8 kW) at
2000 rpm.
The Ford 2000 fitted with 4 transmission options: 4-speed range
transmission, 12x3 gear transmission, 6-speed range transmission, and
8x2 gear transmission. All transmissions have unsynchronized gears.
The maximum forward speed - 22 mph (35.4 km/h), max. reverse speed - 8.4 mph
(13.5 km/h).
The open center hydraulic system includes a gear pump with fluid flow
rate of 4 gpm (15 lpm). The hydraulic system pressure is 2500 psi. The Ford
2000 tractor is equipped with 5.5x16 front tyres and 11.2x28 rear tyres.
The wheel base is 75.8 inches (1920 mm). Compatible front end loaders
for the Ford 2000 tractor: 771 loader with a lift capacity to
max height of 1800 lbs (816 kg), or 772 loader with a lift capacity to
max height of 2500 lbs
(1134 kg).
| Engine oil capacity, qts (L) |
8.0 (7.6) |
| Engine coolant capacity, qts (L) |
13.2 (12.5) |
| Transmission system capacity (4-Speed), gal (L) |
1.65 (6.2) |
| Transmission system capacity (4-Speed), gal (L) |
3.3 (12.5) |
| Hydraulic system capacity, gal (L) |
6.3 (23.8) |
| Steering system capacity, qts (L) |
2.0 (1.9) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Steering oil type |
134D, Gearlube LS 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filter |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filter |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number (Cartridge) |
86546611, CFPN6731B |
| Engine oil filter part number (Spin-On) |
86546614, E8NN6714AA |
| Engine fuel filter part number |
86546599, 84535312 or EDPN9N074AA (Diesel) |
| Engine air filter part number |
E6NNR500DA, E6NN9B618AA |
| Hydraulic oil filter part number |
84277192 or C5NNN832B |
| Steering filter part number |
C7NN3N538A, EDPN3K758A |
