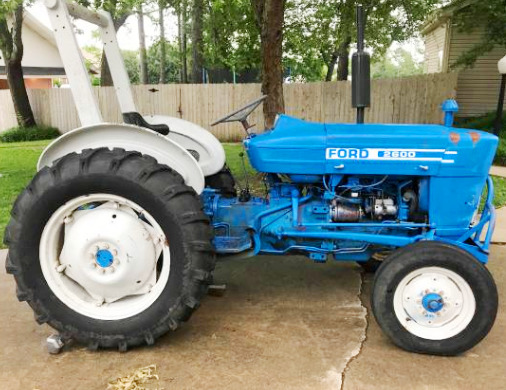

Ford 2600 Tractor Maintenance
The
Ford 2600 is a two-wheel drive utility tractor. This model was manufactured from
1975 to 1981. The Ford 2600 tractor is powered by Ford vertical 3-cylinder water
cooled diesel engine with a maximum power of 36 Hp (26.2 kW), or Ford 3-cylinder
gasoline engine with a max power of 35.5 Hp (26.5 kW).
The Ford 2600 was fitted with 2 transmission options: 6x2 unsynchronized
gear transmission or Dual-Range transmission with 8 forward and 2
reverse gears. Max. travel speed (forward/reverse): 17.4 mph (28 km/h)
and 8.4 mph (13.5 km/h).
The open center hydraulic system used a gear pump with a rated fluid
flow of 8.5 gpm (32.1 lpm). The hydraulic system pressure is 173 bar
(2500 psi). The tractor is equipped with 5.50x16 front tyres and 12.4x28
rear tyres. The wheelbase is 75.8" (1920 mm). The Ford 2600 is
compatible with the following attachments:
Ford 730 loader with lift
capacity to full height of 2040 lbs (925 kg), and
Ford 772A loader with
lift capacity to full height of 2460 lbs (1115 kg).
| Engine oil capacity, qts (L) |
7.0 (6.6) |
| Engine coolant capacity, qts (L) |
12.0 (11.3) |
| Transmission system capacity, gal (L) |
3.5 (13.2) |
| Hydraulic system capacity, gal (L) |
6.2 (23.3) |
| Steering system capacity, qts (L) |
2.0 (1.9) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Steering oil type |
134D, Gearlube LS 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filters |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filters |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Replace cab air filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number |
86546614, E8NN6714AA |
| Engine fuel filter part number |
84535312, EDPN9N074AA |
| Engine air filter part number (Primary) |
84493216, 86525008 |
| Engine air filter part number (Secondary) |
E9NN9B618AA, D6NN9601B |
| Hydraulic oil filter part number |
84518613, D6NNB486A |
| Steering oil filter part number |
EDPN3K758A |
| Cab air filter part number |
D8NN94000N20CA |
