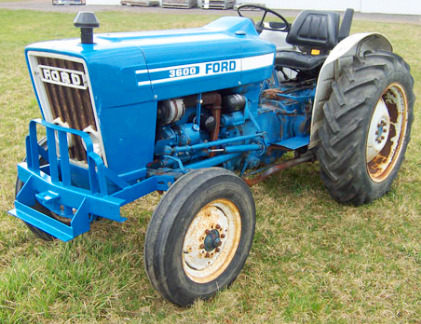

Ford 3600 Tractor
The
Ford 3600 is a 4x2 (2WD) utility tractor. This model was manufactured between
1975 and 1981.
The components of Ford 3600 tractor driveline system: Ford 3-cylinder
water cooled diesel engine with a maximum power of 48 hp (35.8 kW) or
Ford 3-cylinder gasoline engine with a rated power of 44 hp (32.8 kW),
and 6-speed range unsynchronized gear transmission or Dual-range
transmission with 8 forward and 2 reverse gears.
Max. travel speed (forward/reverse): 17.4 mph (28.0 km/h) and 8.4 mph
(13.5 km/h). The closed center hydraulic system used a piston pump with
flow rate of 8.5 gallons per minute (32.1 liters per minute). The
hydraulic pressure is 2100 psi (145 bar). The Ford 3600 was equipped
with 6.00x16 front tires and 12.4x28 rear tires. The wheelbase is 75.8
inches (1920 mm).
Compatible attachments for the 3600 tractor:
Ford 730 front end loader
with a lift capacity to full height of 2040 lbs (925 kg), and
Ford 772A
front end loader with a breakout force of 3800 lbs (1723 kg).
| Engine Model |
Ford |
| Engine Type |
Vertical, 3-cylinder, water cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
175 (2.9) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.20 (107.0) |
| Maximum Engine Power, hp (kW) |
48.0 (35.8) |
| Rated Engine Power, hp (kW) |
45.0 (33.6) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
183 (135) |
| Torque Speed, rpm |
1400 |
| Compression |
16.3:1 |
| Firing Order |
1-2-3 |
| Air Cleaner |
Oil bath |
| Fuel Tank Capacity, gal (L) |
13.0 (49.2) |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Coolant Capacity, qts (L) |
11.0 (10.4) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
128 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
32 |
| Engine Model |
Ford |
| Engine Type |
Vertical, 3-cylinder, water cooled gasoline |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
175 (2.9) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.20 (107.0) |
| Maximum Engine Power, hp (kW) |
46.0 (34.3) |
| Rated Engine Power, hp (kW) |
44.0 (32.8) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
183 (135) |
| Torque Speed, rpm |
1100 |
| Compression |
7.75:1 |
| Firing Order |
1-2-3 |
| Air Cleaner |
Dry type |
| Fuel Tank Capacity, gal (L) |
13.0 (49.2) |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Coolant Capacity, qts (L) |
11.0 (10.4) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
77 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
32 |
| PTO Operational Type |
Transmission / Live |
| PTO Horsepower (Diesel), hp (kW) |
37.7 (28.1) |
| PTO Horsepower (Gasoline), hp (kW) |
37.9 (28.3) |
| PTO Speed, rpm |
540 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
13.8 (13.1) |
| Maximum Forward Speed, mph (kph) |
17.4 (28.0) |
| Maximum Reverse Speed, mph (kph) |
7.0 (11.3) |
| Transmission Type |
Dual-Range |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
13.8 (13.1) |
| Maximum Forward Speed, mph (kph) |
17.4 (28.0) |
| Maximum Reverse Speed, mph (kph) |
8.4 (13.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Differential mechanical expanding shoe |
| Front Tire Size |
6.0-16 |
| Rear Tire Size |
12.4-28 |
| Front Tread, in (mm) |
52-80 (1320-2030) |
| Rear Tread, in (mm) |
52-76 (1320-1930) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
8.5 (32.1) |
| Steering Flow, gpm (Lpm) |
4.3 (16.1) |
| Hydraulic Pressure, Bar (psi) |
145 (2100) |
| Hydraulic System Capacity, gal (L) |
6.2 (23.3) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Top-link draft sensing |
| Standard Lift Capacity at lift pin, lb (kg) |
1940 (880) |
| Wheelbase, in (mm) |
75.8 (1920) |
| Length, in (mm) |
127 (3220) |
| Height (Hood), in (mm) |
54 (1370) |
| Overall Width, in (mm) |
64 (1620) |
| Ground Clearance (Front Axle), in (mm) |
21.5 (540) |
| Ground Clearance (Rear Axle), in (mm) |
13.3 (330) |
| Weight (Shipping), lb (kg) |
3846 (1740) |
| Weight (Ballasted), lb (kg) |
6900 (3130) |
