Ford 4000 Tractor Maintenance
The

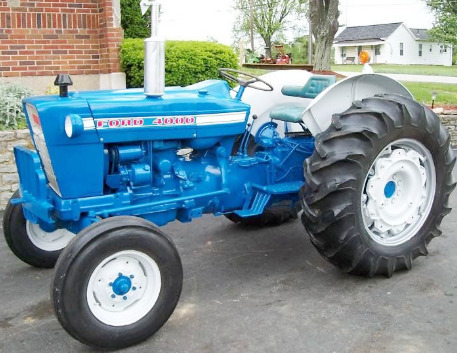

Ford 4000 is a two-wheel drive utility tractor. This model was manufactured from
1962 to 1975. The Ford 4000 is powered by Ford vertical 3-cylinder naturally
aspirated cooled diesel engine with a maximum power of 46.7 hp (34.8 kW), or
Ford 3-cylinder water cooled gasoline engine with a maximum power of 46.3 hp
(34.5 kW).
The Ford 4000 tractor was fitted with 2 types of transmission. 1st type:
8x2 Dual-Range transmission. 2nd type: Select-O-Speed transmission with
10 forward and 2 reverse gears.
Max. travel speed (forward/reverse): 17.6 mph (28.3 km/h) and 8.1 mph
(13 km/h). The open center hydraulic system used a gear pump with a
rated fluid flow of 5 gpm (18.9 lpm) or 5.5 gpm (20.8 lpm). The main
relief pressure is 173 bar (2500 psi). The tractor is equipped with
6.0x16 or 7.5x16 front tyres and 12.4x38 or 13.6x38 rear tyres. The
wheel base is 84.5" (2140 mm). The Ford 4000 is compatible with a
Ford
771 loader with lift capacity to full height of 1800 lbs (816 kg), or
Ford 772 loader with lift capacity to full height of 2500 lbs (1134 kg).
| Engine oil capacity, qts (L) |
7.7 (7.2) |
| Engine coolant capacity, qts (L) |
14.0 (13.2) |
| Transmission system capacity (8-Speed), gal (L) |
3.3 (12.5) |
| Transmission system capacity (Select-O-Speed), gal (L) |
3.1 (11.6) |
| Hydraulic system capacity, gal (L) |
8.9 (33.9) |
| Front axle oil capacity, qts (L) |
1.5 (1.4) |
| Steering system capacity, qts (L) |
2.0 (1.9) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Steering oil type |
134D, Gearlube LS 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filter |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filter |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Change front axle oil |
Every 1200 hours |
| Replace transmission oil filter (Select-O-Speed) |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number (Cartridge) |
86546608, CFPN6731B |
| Engine oil filter part number (Spin-On) |
86546614, E8NN6714AA |
| Engine fuel filter part number |
86546599, EDPN9N074AA (Diesel) |
| Engine air filter part number |
E6NNR500DA, E6NN9B618AA |
| Hydraulic oil filter part number |
84277192, C5NNN832B |
| Transmission oil filter part number (Select-O-Speed) |
309735, C0NN7B155A |
| Steering oil filter part number |
C7NN3N538A, EDPN3K758A |
