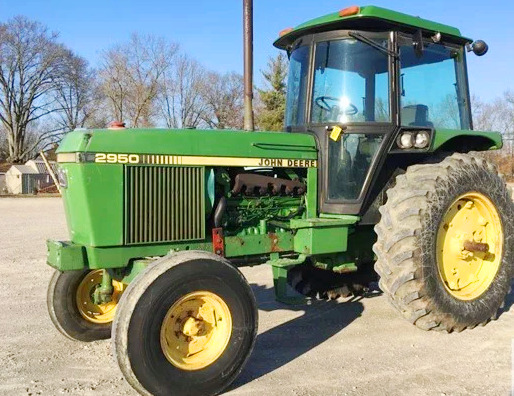

John Deere 2950 Tractor
The
John Deere 2950 is a two-wheel drive or four-wheel drive utility tractor from
2050 series. This model was manufactured between 1983 and 1988. The John Deere
2950 tractor is powered by 359 cu.in (5.9L) John Deere 6359DL 4-cycle 6-cylinder
direct injection liquid cooled naturally aspirated diesel engine with a rated
power of 94 hp (69.6 kW) at 2500 rev/min.
The John Deere 2950 is fitted with 2 types of transmission. 1st type:
16x8 top shaft synchronized (TSS) partial power shift transmission. 2nd
type: Top shaft synchronized (TSS) creeper transmission with 12 forward
and 8 reverse gears. Max forward speed - 17.4 mph (27.9 kph), max
reverse speed - 7.8 mph (12.5 kph). The closed center hydraulic system
used a piston pump with fluid flow rate of 23 gpm (87.2 lpm). The
2-wheel drive models are equipped with 10.0x16 front tires and 18.4x34
rear tires. The 13.6x24 front tires and 18.4x34 rear tires are used for
tractors with 4-wheel drive.
The wheelbase is 100.4" (2550 mm) for 4x2 (2WD) models and 101.6" (2580
mm) for 4x4 (4WD) models. The tractor is compatible with a
John Deere
148 front-end loader with lift capacity to full height of 3100 lbs (1405
kg), John Deere 260 front-end loader with lift capacity to full height
of 3186 lbs (1445 kg), or John Deere 265 front-end loader with lift
capacity to full height of 3920 lbs (1778 kg).
| Engine Model |
John Deere 6359DL |
| Engine Type |
4 cycle 6-cylinder liquid cooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
359 (5.88) |
| Engine Bore, in (mm) |
4.19 (106.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Rated Engine Power, hp (kW) |
94.0 (69.6) |
| Rated Engine Speed, rpm |
2500 |
| Aspiration |
Naturally aspirated |
| Compression |
16.8:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dry type |
| Intake Valve Clearance, in (mm) |
0.014 (0.35) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
32.3 (122.5) |
| Oil Capacity, qts (L) |
12.1 (11.5) |
| Coolant Capacity, qts (L) |
20.1 (19.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
85.0 (63.4) |
| PTO Speed, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/2415 |
| PTO / Engine Speed, rpm |
1000/2407 |
| Transmission Type |
Hi-Lo Top shaft synchronized (TSS) |
| Gearbox Type |
16F/8R, partial power shift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Single dry disc |
| Maximum Forward Speed, mph (kph) |
17.4 (27.9) |
| Maximum Reverse Speed, mph (kph) |
7.8 (12.5) |
| Transmission Type |
TSS Creeper |
| Gearbox Type |
12F/8R, partially synchronized |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Single dry disc |
| Maximum Forward Speed, mph (kph) |
17.4 (27.9) |
| Maximum Reverse Speed, mph (kph) |
7.8 (12.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Power Steering |
| Brakes Type |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4x34 |
| Front Tire Size (4WD) |
13.6x24 |
| Rear Tire Size (4WD) |
18.4x34 |
| Front Tread, in (mm) |
58.3-80.3 (1480-2040) |
| Rear Tread, in (mm) |
61.8-94.9 (1570-2410) |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
23.0 (87.2) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Load and depth control |
| Lift Capacity at pin, lb (kg) |
4870 (2208) |
| Wheelbase (2WD), in (mm) |
100.4 (2550) |
| Wheelbase (4WD), in (mm) |
101.6 (2580) |
| Overall Length, in (mm) |
153.2 (3890) |
| Height (Steering Wheel), in (mm) |
73 (1850) |
| Height (Cab), in (mm) |
108.3 (2750) |
| Ground Clearance (2WD), in (mm) |
25.9 (650) |
| Ground Clearance (4WD), in (mm) |
18.9 (480) |
| Weight (Operating), lb (kg) |
10100 (4580) |
| Weight (Ballasted), lb (kg) |
11045 (5010) |
| Loader Model |
John Deere 260 |
| Maximum Lift Height at Pin, in (mm) |
154 (3910) |
| Clearance under Bucket Level, in (mm) |
147 (3730) |
| Clearance with Dumped Bucket, in (mm) |
126 (3200) |
| Reach at Maximum Height, in (mm) |
40 (1010) |
| Maximum Dump Angle, deg |
46 |
| Maximum Rollback Angle, deg |
42 |
| Lift Capacity to Max Height at Pin, lbs (kg) |
3185 (1445) |
| Breakout Force at Pivot Pin, lbs (kg) |
4870 (2210) |
| Bucket Width, in (mm) |
73 (1850), 85 (2150) |
| Loader Weight, lb (kg) |
2178 (985) |
