Kubota MX5000 Troubleshooting
The

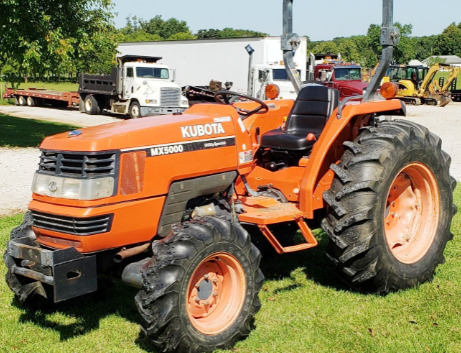

Kubota MX5000 utility tractor was manufactured between 2002 and 2008. This model
was designed in two versions: MX5000F (2WD) and MX5000DT (4WD). The Kubota
MX5000 tractor is equipped with a 148.5 cu.in (2.4L) Kubota V2403 4-cycle
vertical 4-cylinder indirect injection naturally aspirated liquid-cooled diesel
engine.
The engine has a cylinder bore of 3.43" (87 mm), piston stroke of 4.04"
(102 mm), and rated power of 52.2 hp (38.9 kW). The gear shift
transmission includes a dry clutch and partially synchronized gearbox
with 8 forward and 4 reverse gears. The maximum forward speed - 16.4 mph
(26.5 kph), maximum reverse speed - 5.8 mph (9.3 kph). The open center
hydraulic system used a gear pump with fluid flow rate of 9.2 gpm (34.8
lpm). The hydraulic pressure is 175 bar (2530 psi).
The 2-wheel drive models are equipped with 7.5L-15 front tires and
14.9-26 rear tires. The 9.50-16 front tires and 14.9-26 rear tires are
used for tractors with 4-wheel drive. The wheel base is 71.6" (1810 mm)
for models with 2WD and 71.1" (1800 mm) for models with 4WD. The MX5000
tractor is compatible with a Kubota LB702 front-end loader with lift
capacity to full height of 1852 lbs (840 kg), or
Kubota LA852 front-end
loader with lift capacity to full height of 2470 lbs (1120 kg).
| Engine Troubleshooting |
| Engine will not start or starts up hard |
| Fuel filter clogging - Change filter element |
| Closed fuel supply valve - Open supply valve to inject fuel |
| There is air in the fuel system - Bleed the system |
| Dirty or damaged injectors - Test fuel injectors and change if necessary |
| Fuel injection pump malfunction - Rebuild or replace pump |
| Poor compression - Inspect cylinder block and change defective components |
| Engine stops running unexpectedly |
| Engine is cold - Warm up the engine to required temperature |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Improper fuel injection - Fuel injection settings required |
| Clogged fuel filter element - Filter maintenance required |
| Fuel injectors are clogged or faulty - Change fuel injectors |
| Engine starts and stalls immediately |
| Incorrect setting of fuel injection pump timing - Correct injection timing |
| Fuel filter is clogged - Clean the filter or install new filter element |
| Fuel injector nozzles are clogged or faulty - Service or replace nozzles if required |
| Fuel injection pump failure - Repair or install a new fuel pump |
| Air cleaner element is dirty - Clean or replace the air cleaner element |
| Engine stops at low idle speed |
| Too low idle RPM - Adjustment required |
| Fuel injection pump is not operating properly - Repair or change injection pump |
| Fuel injector nozzles are dirty - Change injector nozzles |
| Excessive valve clearance - Correct valve clearance |
| Engine has a lack of coolant - Fill cooling system to proper level. Check system for leaks |
| Cooling system parts are failed or system is clogged - Replace faulty parts or flush the cooling system |
| Engine oil level low - Add oil to the engine crankcase |
| Fan belt tension is unadjusted or belt is damaged - Adjust belt tension properly or change it |
| Thermostat is defective - Test thermostat opening temperature, replace as required |
| Clogged or damaged injectors - Service or change fuel injectors |
| Fuel injection pressure is wrong - Check the fuel injection pressure and adjust if necessary |
| Air filter is clogged - Install new filter element or replace it |
| Oil filter element clogged - Clean or change engine oil filter |
| Diesel engine is overloaded - Reduce engine load |
| Excessive valve clearance - Adjust valve clearance according to specifications |
| Low idle speed setting is incorrect - Adjust low idle speed |
| Restricted fuel pipes or hoses - Service fuel hoses and pipes |
| Loss of compression: Leaking or faulty valves - Have valves replaced |
| Incorrect setting of fuel injection pump timing - Correct injection timing |
| Damaged or clogged injector nozzles - Service or replace nozzles if required |
| Insufficient engine oil - Fill up the oil to required level |
| Engine has not warmed up to required temperature - Warm up engine as required |
| Worn main bearings or crankshaft - Change defective components as required |
| Piston rings are worn or broken - Install new piston rings |
| Flywheel mounting screws are loose - Tighten the screws |
| Excessive engine oil consumption |
| Oil leaks: Worn gaskets or seals - Change to repair leaks |
| Incorrect oil viscosity - Use oil of correct viscosity |
| Piston rings are defective or worn - Replace piston rings |
| Damaged valve guides or valve stems - Need to replace the valves |
| Worn pistons or cylinder liners - Check pistons and liners, install new parts as required |
| Electrical System Troubleshooting |
| Battery cannot be charged |
| Battery bad cell - Use a new battery |
| Bad battery wiring harness - Inspect wiring for malfunctions, replace or repair |
| Corroded or loose battery cables and terminals - Clean or tighten cables and terminals |
| Belt wear or improper belt tension adjustment - Adjust belt tension as required or replace belt |
| Battery voltage is low - Low battery charging, charge as required |
| Battery discharges quickly - Service battery or change it |
| Bad battery wiring harness - Inspect wiring for malfunctions, replace or repair |
| Corroded or loose cables and terminals - Clean or tighten terminals and cables |
| Low battery output - Recharge the battery |
| Discharged or faulty battery - Recharge or replace battery |
| Starter motor is damaged - Change or repair starter |
| Improperly connected or disconnected cables - Check battery cables and connect properly |
| Transmission Troubleshooting |
| Hard to shift gears |
| Clutch is unadjusted or worn - Clutch needs to be adjusted or changed |
| Stuck or damaged gear shift linkage - Service or replace shift linkage |
| Shift forks are damaged or worn - Change defective shift forks |
| Worn gear shift mechanism - Replace worn components |
| Insufficient transmission oil pressure |
| Not enough oil in transmission - Checking transmission oil level and add if necessary |
| Transmission fluid filter is plugged (if fitted) - Replace or clean transmission fluid filter |
| Faulty relief valve - Change the valve |
| Broken or worn bearings - Replace the bearings |
| Not enough oil in transmission - Check transmission oil level and add oil as required |
| Transmission fluid contamination - Fill up with fresh transmission fluid |
| Improper backlash or damaged gears - Replace gears or adjust backlash properly |
| Bent or worn shift forks - Shift forks need to be replaced |
| Broken gaskets or seals - Replace worn seal or gaskets |
| Cracked transmission case - Install a new transmission case |
| Hydraulics Troubleshooting |
| Hydraulic system overheated |
| Hydraulic system pressure is incorrect - Hydraulic pressure needs to be set correctly |
| Main relief valve malfunction or incorrect adjustment - Adjust or replace the relief valve |
| Hydraulic oil is contaminated - Fill up with fresh hydraulic oil |
| Aeration in hydraulic system - Check the pump seals, suction pipe, and fittings |
| Insufficient hydraulic oil pressure |
| Hydraulic oil level is low - Check oil level and add hydraulic oil as required |
| Hydraulic oil filter element clogging - Service or replace the hydraulic filter |
| Faulty hydraulic oil pump - Check pump capacity and change if necessary |
| Defective or not adjusted hydraulic spool valve - Replace or set properly |
| Hydraulic cylinder is not working - Check cylinder components for wear or damage and change if necessary |
| Hydraulic piping leaks - Detect leaks in the system and fix it |
| Hitch won't lift or lifts slowly |
| Hydraulic fluid level is low - Need to add fluid |
| Hydraulic oil is too cold - Allow oil to warm |
| Hydraulic fluid filter is dirty - Service the hydraulic filter or change if required |
| Damaged hydraulic oil pump - Check pump flow and change pump if necessary |
| Faulty or incorrectly adjusted main relief valve - Adjust or replace the relief valve |
| Defective or incorrect setting hydraulic control valve block - Adjust correctly or replace |
| Hydraulic cylinder failure - Inspect cylinder components for wear or damage and change if required |
| Damaged or loose suction line - Tighten or change |
| Three-point hitch dropping is too slow or cannot be dropped |
| Defective or not adjusted hydraulic spool valve - Adjust correctly or replace |
| Hydraulic cylinder failure - Inspect cylinder components for wear or damage and change if required |
| Hitch cross shaft is damaged - Replace the shaft |
| The hitch is defective if there is internal mechanical damage - Change defective or worn hitch parts |
| Hitch jerks when lift or lower |
| Air leaks in hydraulic system - Check the pump seals, suction line, and fittings |
| Hydraulic oil is contaminated - Fill up with fresh hydraulic oil |
| Hydraulic pump failure - Check pump flow and install new pump if necessary |
| Hydraulic control valve block is faulty or out of adjustment - Adjust correctly or replace |
| Hydraulic cylinder malfunction - Check cylinder components for damage or wear and change if necessary |
| Steering System Troubleshooting |
| Difficult steering |
| Steering column is broken or improperly installed - Steering column must be installed properly or replaced |
| Air leaks in steering system - Bleed the system of air |
| Incorrect toe-in adjustment - Check toe-in and correct |
| Tires are improperly inflated - Inflate as necessary |
| Damaged hydraulic steering pump - Repair or replace steering pump |
| Damaged or worn hydrostatic steering unit - Check and replace as required |
| Steering cylinder is faulty - Repair or replace hydraulic steering cylinder |
| Insufficient steering oil - Need to add steering oil |
| Steering system has oil leaks - Tighten the steering hose and line joints |
| Steering wheel has too much free-play |
| Steering column shaft or coupling has maximum wear - Change faulty part |
| Damaged or worn hydrostatic steering unit - Repair or replace the steering unit |
| Hydraulic steering pump is defective - Install a new steering pump |
| Steering tie-rod ends or linkage are worn - Replace damaged part |
| Front wheels wander to left or right |
| Tires are deflated - Need to inflate tires |
| Improper toe-in adjustment - Adjust toe-in correctly |
| Steering tie-rod ends or linkage are defective - Change damaged component |
| Faulty or worn hydrostatic steering unit - Repair or change the steering unit |
| Steering cylinder is faulty - Repair or replace hydraulic steering cylinder |
| Damaged or improperly adjusted or worn front hub bearings - Install new bearings or adjust it correctly |
