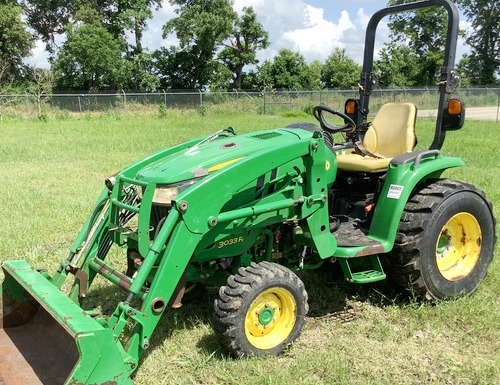

John Deere 3033R Troubleshooting
The
John Deere 3033R compact tractor was manufactured from 2014 to 2021. The John
Deere 3033R tractor is powered by 100.2 cu.in (1.6L) Yanmar 3TNV88 4-cycle
3-cylinder direct injection liquid-cooled diesel engine with a max output power
of 33 hp (24.6 kW).
The John Deere 3033R is fitted with two transmission options:
PowrReverser power shuttle transmission with 12 forward and 12 reverse
gears, or three-range hydrostatic transmission with infinite forward and
reverse gears. The maximum travel speed (forward and reverse): 19.1 mph
(30.6 km/h) / 18.5 mph (29.8 km/h).
The open center hydraulic system used a gear pump with a rated capacity
of 8.6 gal/min (32.7 l/min). The hydraulic system pressure is 172 bar
(2500 psi). The tractor is equipped with a hydrostatic power steering,
wet disc brakes, 7.00x14 (AG) or 27x8.50-15 (Turf) front tires, and
11.2x24 (AG) or 41x14.00-20 (Turf) rear tires. The wheel base is 68"
(1720 mm).
The John Deere 3033R is compatible with the following attachments: 60"
or 72" mid-mount 3-blade mower decks with cutting height of 1.5-6.0"
(38-127 mm) and hydraulic lifting, John Deere H160 front-end loader with
lift capacity to full height of 1360 lbs (616 kg),
John Deere H165
front-end loader with lift capacity to full height of 1598 lbs (724 kg),
John Deere 375A backhoe with 2-ft flat digging depth of 94" (2380 mm),
and John Deere 385A backhoe with maximum digging depth of 103" (2610
mm).
| Engine Troubleshooting |
| Engine hard starting or not starting |
| Fuel filter clogging - Replace filter element |
| Fuel supply valve is closed - Open fuel supply valve |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Clogged fuel injectors - Clean or replace fuel injectors |
| Fuel injection pump malfunctioning - Replace or rebuild injection pump |
| Low engine compression - Check cylinder block and change worn components |
| Diesel shuts off during operation |
| Coolant temperature is low - Engine is not warmed up to the required temperature |
| Fuel-line is leaking air - Retighten clamps, replace defective pipes |
| Irregular fuel injection - Adjust fuel injection timing |
| Plugged fuel filter - Change the filter element |
| Fuel injectors are clogged or faulty - Service or change fuel injectors |
| Engine starts but immediately stops |
| Timing of fuel injection pump is wrong - Check the fuel injection pump timing setting |
| Fuel filter clogging - Replace the filter element |
| Fuel injector nozzles fault - Install a new set of well-balanced nozzles |
| Fuel injection pump malfunction - Rebuild or install a new injection pump |
| Dirty air cleaner - Air cleaner maintenance required |
| Low idle speed setting is not correct - Adjust as required |
| Fuel injection pump malfunction - Change or repair the pump |
| Faulty fuel injector nozzles - Replace fuel injector nozzles |
| Valve clearance is wrong - Correct valve clearance needs to be set |
| Engine coolant is insufficient - The cooling system needs to be refilled. Repair any leaks if necessary |
| Cooling system parts are damaged or system is dirty - Change faulty components or service cooling system |
| Lack of engine oil - Checking oil level and add if necessary |
| Broken fan belt or incorrect belt tension - Adjust belt tension properly or replace it |
| Thermostat is defective - Check and change if necessary |
| Dirty or faulty injectors - Check fuel injectors and replace if required |
| Fuel injection pressure is incorrect - Check the fuel injection pressure and adjust if necessary |
| Air filter element is clogged - Change or service air filter element |
| Clogged oil filter - Change or clean engine oil filter element |
| Engine is running overloaded - Load reducing required |
| The valve clearance is not adjusted - Adjust valve clearance |
| Incorrectly set low idle speed - Normalize low idle speed |
| Fuel pipes or hoses are dirty - Service fuel hoses and pipes |
| Insufficient engine compression: Leaking or broken valves - Valves need to be replaced |
| Unadjusted fuel injection pump timing - Check and correct adjustments |
| Dirty or defective injector nozzles - Install new set of properly balanced nozzles |
| Engine oil insufficient - Checking oil level and add if necessary |
| Engine is cold - Normalize the temperature by warming up the engine |
| Main bearings or crankshaft are worn out - Change defective components as required |
| Stuck or worn piston rings - Replace piston rings |
| Loose flywheel bolts - Inspect flywheel bolts and tighten properly |
| External oil leaks: Damaged gaskets or seals - Replace to repair leaks |
| Wrong oil viscosity - Fill up with the proper oil viscosity |
| Stuck or worn piston rings - Replace piston rings |
| Valve stems and guides are worn - Need to replace the valves |
| Pistons or cylinder liners are scored - Check pistons and liners, replace as required |
| Electrical System Troubleshooting |
| Battery will not charge |
| Dead cell in battery - Battery replacement required |
| Battery wiring harness damage - Inspect battery wiring for damage, replace or repair |
| Corroded or loose battery terminals and cables - Tighten or clean terminals and cables |
| Belt is worn or belt tension is incorrectly adjusted - Adjust belt tension properly or replace belt |
| Starter motor cranks slow |
| Low battery output voltage - Battery needs to be recharged |
| Battery discharges quickly - Battery needs service or replacement |
| Battery cable harness damage - Check battery cables for damage, change or repair |
| Loose or corroded battery cables and terminals - Tighten or service terminals and cables |
| Starter motor is not working |
| Low battery capacity - Battery needs to be recharged |
| Discharged or worn battery - Change or recharge battery |
| Starter motor is damaged - Repair or change starter |
| Battery cables are disconnected or incorrectly connected - Check cables and reconnect it correctly |
| Transmission Troubleshooting |
| Difficult to shift gears |
| Incorrectly adjusted or damaged clutch - Clutch needs to be adjusted or changed |
| Loose or broken gear shift linkage - Replace or repair the shift linkage |
| Shift forks are worn or damaged - Shift forks need to be replaced |
| Defective gearshift mechanism - Replace defective components |
| Low transmission oil pressure |
| Low transmission oil level - Checking transmission oil level and add if necessary |
| Transmission fluid filter clogging (if fitted) - Replace or clean transmission fluid filter |
| Relief valve is defective - Replace relief valve |
| Cracked or worn bearings - Replace faulty bearings |
| Insufficient fluid supply - Check transmission fluid level and add it as required |
| Contaminated transmission oil - Fill up with fresh transmission oil |
| Gears are worn or backlash is improper - Replace gears or adjust backlash properly |
| Shift forks are damaged or worn - Change the shift forks |
| Transmission fluid leaking |
| Broken gaskets or seals - Replace worn seal or gaskets |
| Cracked transmission case - Install a new transmission case |
| Hydrostatic Transmission Troubleshooting |
| HST transmission is making noise |
| Transmission oil level is too low or oil is dirty - Pour fresh oil or add oil to proper level |
| Worn or misadjusted speed control rod linkage - Repair or adjust link rod linkage |
| Relief valve failure - Install a new relief valve |
| Excessive loading - Load needs to be reduced |
| Worn or damaged transmission components - After disassembling and checking, change defective parts |
| Insufficient oil supply - Fill the transmission housing to proper oil level |
| Clogged transmission fluid filter element - Change or clean the transmission fluid filter |
| Damaged or clogged cooling components - Inspect all cooling components and replace or clean if necessary |
| Excessive loading - Reduce the load is required |
| Insufficient oil supply - Checking transmission oil level and add if necessary |
| Charge pressure is too low - Check charge pressure |
| Worn or defective relief valve - Change relief valve |
| Gaskets or seals are broken - Replace worn gaskets or seal |
| High pressure inside the transmission housing - Inspect hydrostatic transmission parts for malfunction and change if required |
| Plugged transmission fluid return tube - Inspect tube and service if required |
| Hydraulics Troubleshooting |
| Hydraulic system overheats |
| Hydraulic system pressure is not adjusted correctly - Correct adjustment is required |
| Main relief valve is faulty or misadjusted - Adjust or replace the relief valve |
| Hydraulic fluid contamination - Change hydraulic fluid |
| Hydraulic system sucks air - Check the pump seals, suction line, and fittings |
| Low hydraulic system pressure |
| Hydraulic fluid level is insufficient - Fill the hydraulic system with oil |
| Hydraulic fluid filter element clogging - Replace filter element or clean if required |
| Hydraulic pump is defective - Test the pump performance and change pump if required |
| Hydraulic spool valve block is faulty or out of adjustment - Replace or set properly |
| Hydraulic cylinder is defective - Inspect cylinder parts for wear or damage and replace if required |
| Leakage in hydraulic lines - Detect leaks in the system and fix it |
| Three-point hitch lifting is too slow or cannot be lifted |
| Not enough hydraulic fluid in the system - Add fluid to the hydraulic system |
| Hydraulic oil is too cold - Allow oil to warm |
| Hydraulic fluid filter is clogged - Install a new hydraulic filter element |
| Faulty hydraulic oil pump - Flow-rate hydraulic pump and replace pump if necessary |
| Defective or misadjusted main relief valve - Set up or change the relief valve |
| Damaged or incorrect adjusted hydraulic control valve - Change or adjust correctly |
| Hydraulic cylinder failure - Check cylinder parts for wear or damage and replace if necessary |
| Loose or damaged suction line - Tighten or replace |
| 3-point hitch fails to drop or drops slowly |
| Hydraulic spool valve is defective or set improper - Adjust properly or replace |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Hitch cross shaft is worn - Replace the shaft |
| The hitch is defective if there is internal mechanical damage - Change worn or defective hitch parts |
| Hitch is lowered or raised jerkily |
| Air in hydraulic system - Check the pump seals, suction pipe, and fittings |
| Dirty hydraulic oil - The oil must be changed |
| Defective hydraulic pump - Test the pump flow rate and change pump if required |
| Hydraulic spool valve block is defective or set improper - Set properly or replace |
| Hydraulic cylinder malfunction - Inspect the hydraulic cylinder parts for damage or wear and replace if required |
| Steering System Troubleshooting |
| Heavy steering |
| Defective or incorrectly installed steering column - Reinstall the steering column or change it |
| Air trapped in the steering system - Bleed the system of air |
| Incorrect toe-in adjustment - Adjust toe-in correctly |
| Tires are deflated - Need to inflate tires |
| Steering pump malfunction - Repair or replace steering pump |
| Power steering control valve is defective or worn - Inspect and change as required |
| Defective or stuck relief valve - Flush relief valve or change if necessary |
| Low steering fluid level - Fill the steering system with fluid |
| Steering system oil leak - Retighten the connections of the hydraulic steering lines and hoses |
| Excessive steering wheel free play |
| Steering column shaft or coupling is worn out - Change defective part |
| Power steering control valve is damaged or worn - Replace or repair steering valve as required |
| Worn steering pump - Check the steering pump and replace if necessary |
| Steering tie-rod ends or linkage are defective - Replace damaged part |
| Tractor is pulling to left or right |
| Low tire pressure - Inflate the tires |
| Improper toe-in adjustment - Check and adjust toe-in |
| Steering tie-rod ends or linkage are worn - Change failed part |
| Worn or defective power steering control valve - Replace or repair steering valve as required |
| Power steering cylinder failure - Repair or change steering cylinder |
| Front hub bearings are incorrectly adjusted or worn - Adjust correctly or replace bearings |
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
| Farm Tractors Technical Specifications |
