John Deere 3038E Troubleshooting
The

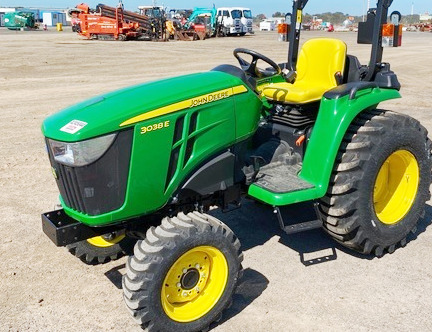

John Deere 3038E is a 4-wheel drive compact utility tractor. This model was
manufactured from 2008 to 2021. The components of John Deere 3038E powerline
system: Yanmar 3TNV86T 4-cycle three-cylinder direct injection turbocharged
diesel engine and two-range hydrostatic transmission with infinite forward and
reverse gears.
A 95.7 cubic inches (1.6L) engine has a cylinder bore of 3.39" (86 mm),
piston stroke of 3.54" (90 mm), and maximum power of 36.7 hp (27.4 kW).
The maximum forward speed - 6 mph (9.7 km/h) using low range or 14.1 mph
(22.7 km/h) using high range, maximum reverse speed - 6 mph (9.7 km/h)
using low range or 13 mph (21 km/h) using high range. The open center
hydraulic system used a dual gear pump with a flow of 5.3 gpm (20.2
lpm). The hydraulic system pressure is 172 bar (2500 psi).
The John Deere 3038E is equipped with a hydrostatic power steering, wet
disc brakes, 7.00x14 (AG) or 25x8.50-14 (Industrial) front tires, and
11.2x24 (AG) or 15-19.5 (Industrial) rear tires. The wheelbase is 62.8"
(1590 mm). The tractor is compatible with a John Deere 305 front-end
loader with lift capacity to full height of 1186 lbs (537 kg), or
John
Deere D160 front-end loader with lift capacity to full height of 1186
lbs (537 kg).
| Engine Troubleshooting |
| Engine doesn't start or hard to start |
| Clogged fuel filter element - Clean the filter or install new filter element |
| Closed fuel cock - Open fuel on-off cock to inject fuel |
| Air in fuel system - Air-bleed fuel system |
| Fuel injectors are damaged or dirty - Test fuel injectors and change if necessary |
| Fuel injection pump is faulty - Repair or install new pump |
| Engine has low compression - Inspect and replace faulty parts |
| Engine shuts off unexpectedly while running |
| Coolant temperature is low - Engine is not warmed up to the required temperature |
| Water, dirt, or air in fuel system - Drain, flush, fill, and bleed system |
| Uneven fuel injections - Repair or adjustment |
| Clogged fuel filter element - Install new filter element |
| Fuel injectors are defective or dirty - Change fuel injectors |
| Diesel starts and immediately stops |
| Incorrectly set fuel injection pump timing - Fuel injection pump timing adjustment needs to be corrected |
| Plugged fuel filter - Service or replace the filter |
| Fuel injector nozzles are dirty - Change or clean injector nozzles |
| Faulty fuel injection pump - Repair or install new pump |
| Dirty air cleaner element - Service or change air cleaner |
| Incorrectly set low idle speed - Test and adjust |
| Fuel injection pump is faulty - Rebuild or change fuel pump |
| Clogged or damaged injector nozzles - Install new set of properly balanced nozzles |
| The valve clearance is incorrect - Have it adjusted |
| Lack of coolant in cooling system - Fill cooling system to proper level. Check the components of cooling system |
| Cooling system is clogged or cooling components are defective - Replace faulty parts or flush the cooling system |
| Engine oil insufficient - Fill up the oil to required level |
| Worn fan belt or unadjusted belt tension - Adjust properly or replace the belt |
| Thermostat fault - Replace the thermostat |
| Dirty or damaged injectors - Check fuel injectors and replace if required |
| Uneven fuel injection pressure - Adjust to proper pressure |
| Air filter element is dirty - Clean or replace the air filter element |
| Oil filter is clogged - Replace or service engine oil filter |
| Engine is running overloaded - Reduce the load or operate the tractor in lower gears |
| Valve out of adjustment - Adjust to proper valve clearance |
| Too low idle RPM - Correct the settings |
| Fuel hoses or pipes are dirty - Service fuel hoses and pipes |
| Low engine compression: Valves are faulty or leaking - Install new valves |
| Incorrectly set fuel injection pump timing - Check and correct adjustments |
| Fuel injector nozzles are damaged or dirty - Install new set of properly balanced nozzles |
| Insufficient engine oil - Check and refill engine oil |
| Engine has not warmed up to the recommended temperature - Warm up the engine |
| Main bearings or crankshaft failure - Change or repair worn components |
| Broken or worn piston rings - Piston rings replacement required |
| Loose flywheel bolts - Inspect flywheel bolts and tighten properly |
| Diesel engine consuming too much oil |
| Oil leaks: Gaskets or seals may be damaged - New components need to be installed |
| Incorrect oil viscosity - Fill up with the correct oil viscosity |
| Piston rings are defective or worn - Have piston rings replaced |
| Damaged valve guides or valve stems - Need to replace the valves |
| Damaged pistons or cylinder liners - Check pistons and liners, replace as required |
| Electrical System Troubleshooting |
| Battery will not charge |
| Worn-out battery - Change the battery |
| Battery wiring harness damage - Inspect battery wiring for damage, replace or repair |
| Corroded or loose battery terminals and cables - Service or tighten battery terminals and cables |
| Belt damage or incorrect belt tension adjustment - Adjust belt tension correctly or replace belt |
| Low battery capacity - Low battery charging, charge as required |
| Battery runs out quickly - Service battery or replace it |
| Battery electrical wire harness failure - Inspect wires for defects, change or repair |
| Loose or corroded cables and terminals - Tighten or clean cables and terminals |
| Low battery output voltage - Battery needs to be recharged |
| Drained or defective battery - Recharge or replace battery |
| Starter motor is defective - Repair or install a new starter |
| Wiring harness is disconnected or improperly connected - Check wiring harness and reconnect properly |
| Hydrostatic Transmission Troubleshooting |
| Hydrostatic transmission makes excessive noise |
| Transmission fluid level is insufficient or fluid is contaminated - Change transmission fluid or fill to required level |
| Speed control rod linkage is worn or not adjusted - Replace rod linkage or adjust correctly |
| Relief valve failure - Replace relief valve as required |
| Excessive transmission load - Reduce loading |
| Transmission parts are worm or defective - After disassembling and checking, change defective parts |
| Transmission fluid overheats |
| Low transmission oil level - Fill the transmission housing to proper oil level |
| Clogged transmission fluid filter element - Change or clean the transmission fluid filter |
| Clogged or damaged cooling components - Check all cooling components and change or clean if required |
| Transmission overloaded - Load needs to be reduced |
| Insufficient fluid supply - Check transmission fluid level and add it as required |
| Insufficient charge pressure - Test charge pressure |
| Relief valve is defective or worn - Replace relief valve |
| Broken gaskets or seals - Gaskets or seal need to be replaced |
| Transmission housing internal pressure is excessive - Inspect transmission components and replace if necessary |
| Plugged oil return tube - Clean or replace return tube |
| Hydraulics Troubleshooting |
| Hydraulic system overheated |
| Incorrect pressure in hydraulic system - Changing the system pressure |
| Misadjusted or defective main relief valve - Adjust relief valve or change if required |
| Hydraulic fluid contamination - Change hydraulic fluid |
| Air in hydraulic system - Check the suction pipe, fittings, and pump seals |
| Insufficient hydraulic fluid pressure |
| Hydraulic oil level is insufficient - Fill up the hydraulic oil |
| Hydraulic oil filter clogging - Service or replace the hydraulic filter |
| Hydraulic pump malfunction - Flow-rate pump and change pump if necessary |
| Faulty or incorrect setting hydraulic control valve - Replace or adjust properly |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Hydraulic lines are leaking - Inspect hydraulic system for leaks and repair it |
| Hitch won't lift or lifts slowly |
| Hydraulic fluid level is low - Add fluid to the hydraulic system |
| Cold hydraulic oil - Warm up the oil |
| Hydraulic fluid filter element clogging - Service the hydraulic filter or change if required |
| Hydraulic pump not working - Test pump performance and replace pump if necessary |
| Main relief valve is damaged or adjusted improperly - Adjust the valve or replace if necessary |
| Hydraulic spool valve is faulty or out of adjustment - Replace or set correctly |
| Hydraulic cylinder is broken - Check cylinder parts for wear or damage and replace if necessary |
| Damaged or loose suction line - Tighten or change |
| Hitch does not lower or lowers very slowly |
| Defective or not adjusted hydraulic spool valve - Adjust correctly or change |
| Hydraulic cylinder is faulty - Inspect cylinder components for damage or wear and change if required |
| Lift arm shaft is damaged - Replace the shaft |
| Internal mechanical failure of the hitch - Change worn or damaged hitch components |
| 3-point hitch lifting or lowering is jerky |
| Air trapped in the hydraulic system - Inspect the suction line, pump seals, and fittings |
| Dirty hydraulic fluid - The fluid must be changed |
| Hydraulic pump is defective - Check pump flow and install new pump if necessary |
| Hydraulic spool valve is not set properly or defective - Change or set correctly |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Steering System Troubleshooting |
| Excessive effort to steer |
| Steering column is broken or improperly installed - Steering column must be installed properly or replaced |
| Air trapped in the steering system - Bleed air from system |
| Incorrect toe-in - Check toe-in and correct |
| Low tire pressure - Inflate the tires |
| Steering pump is faulty - Replace or repair steering pump |
| Damaged or worn power steering control valve - Repair or replace the steering valve |
| Relief valve seizing or failure - Flush relief valve or change if necessary |
| Steering fluid level is insufficient - Add oil to steering system |
| Oil leaks in the steering system - Retighten steering pipe and hose connections |
| Excessive steering wheel play |
| Steering column coupling or shaft has maximum wear - Change defective component |
| Faulty or worn power steering control valve - Inspect and replace as required |
| Steering pump stopped working - Steering pump needs to be replaced or repaired |
| Worn or faulty steering linkage or tie-rod ends - Replace failed component |
| Front wheels wander to left or right |
| Tires are not properly inflated - Inflate tires as required |
| Improper toe-in - Adjust toe-in properly |
| Faulty or worn steering linkage or tie-rod ends - Change damaged part |
| Power steering control valve is defective or worn - Repair or change the steering valve |
| Steering cylinder is damaged - Replace or repair hydraulic steering cylinder |
| Defective or improperly adjusted front hub bearings - Replace the bearings or adjust it properly |
